OUR PRODUCTS

Market Leading Solutions Refined To Perfection

We have meticulously curated our product line to ensure you receive the highest quality, with lead times that meet your schedule, and options that accommodate every budget. Manufactured with the same care and precision as a custom solution, we promise that even our standard products will positively impact your operations.

Home  >  Products


Category

All

Load Cells

Load Pins

Multi-Axis

Torque Transducers

Instrumentation

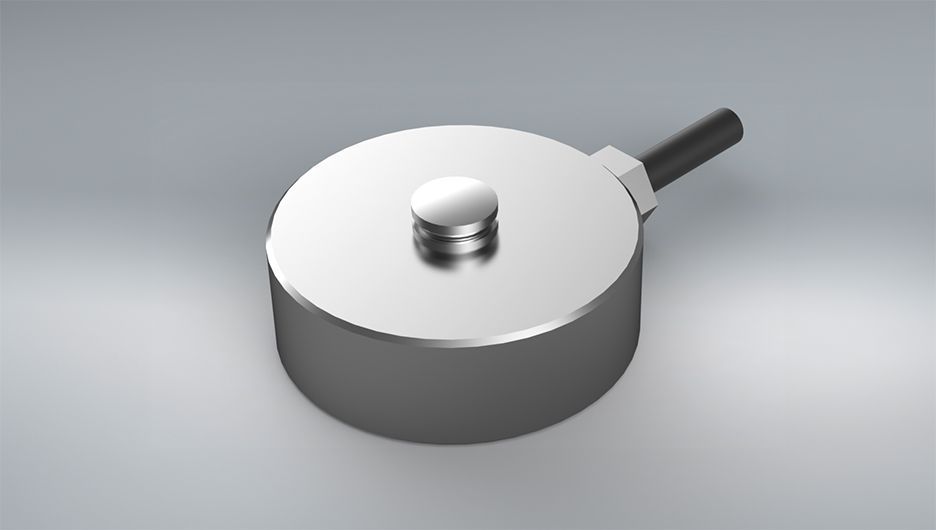

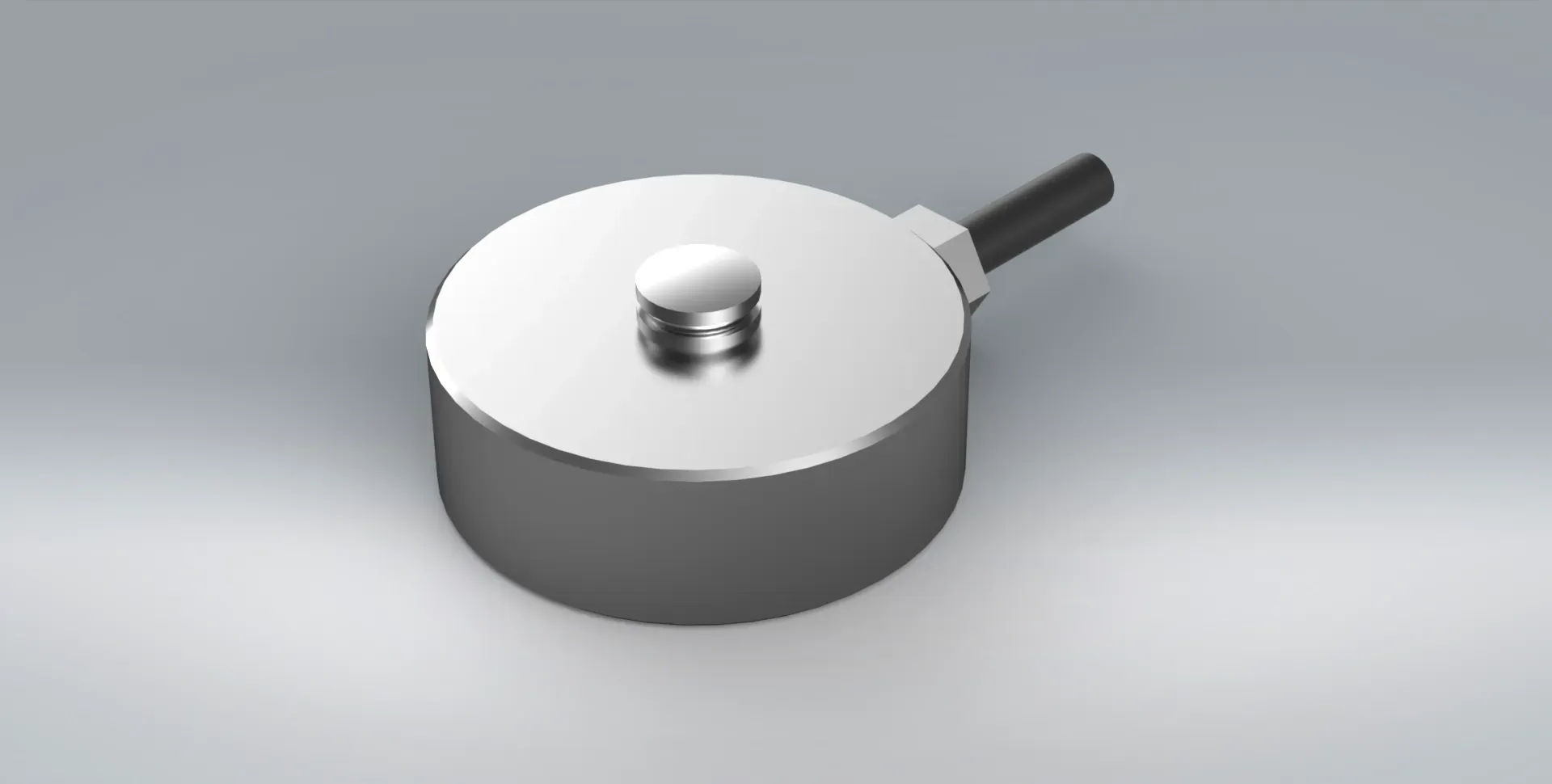

A silver stainless steel CM compression load cell, used to measure static and dynamic loads.

CM

By Noel O'Shaughnessy • May 21, 2024
CAPACITY: 50KG - 2500KG
NON-LINEARITY: ±0.20% FS
RATING: IP67 available

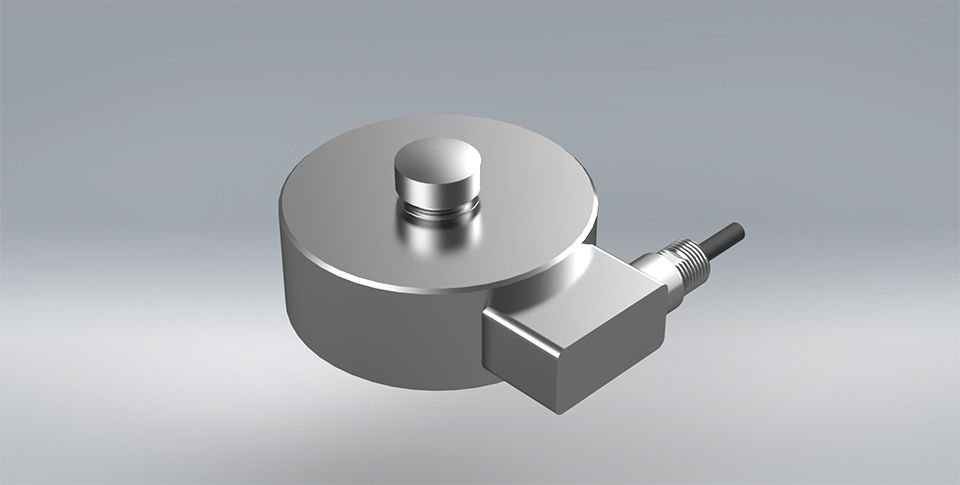

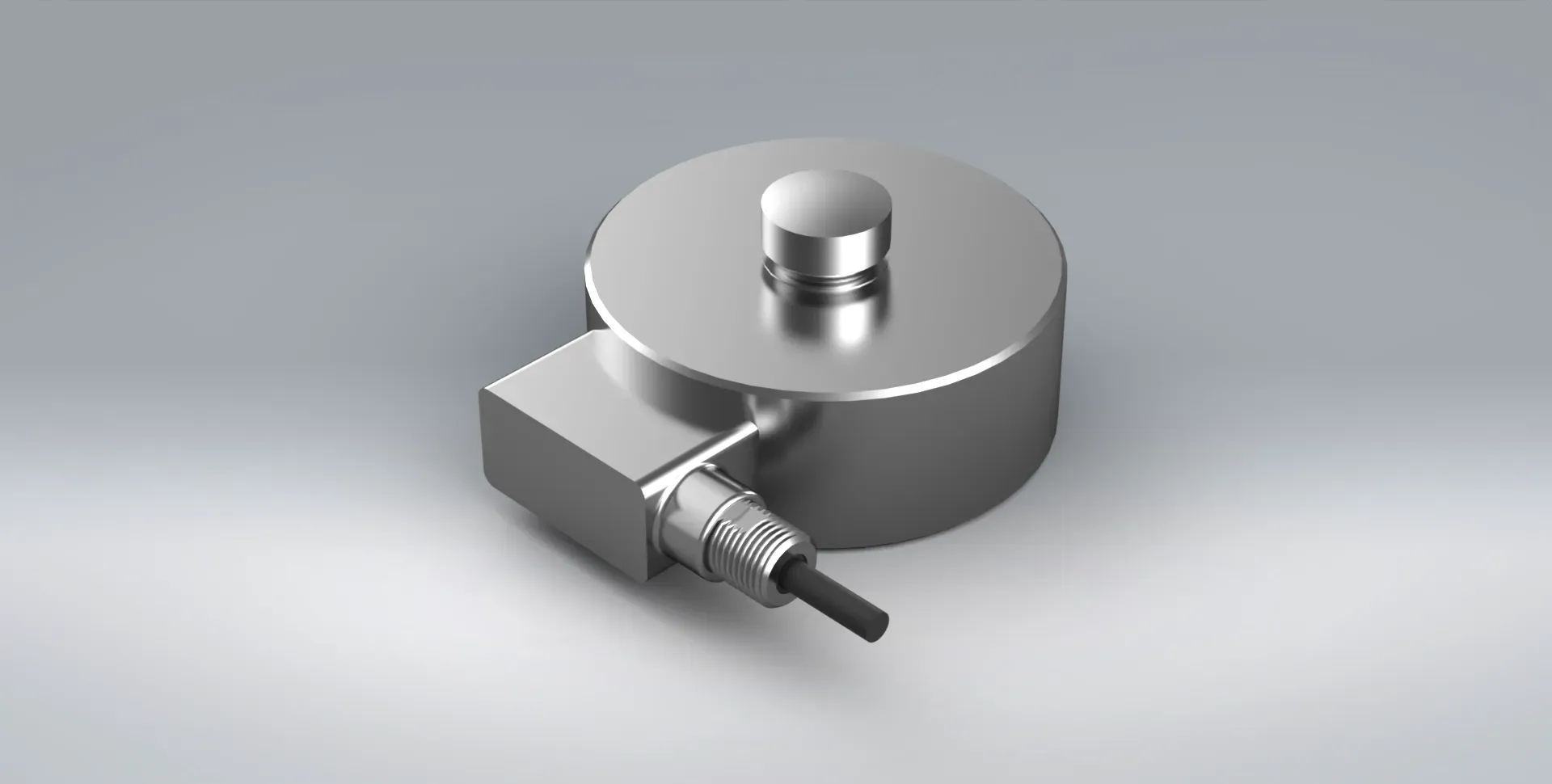

A 3D model of the standard C2S compression load cell diaphragm design, manufactured from stainless steel at PCM in Kenilworth

C2S

May 20, 2024
CAPACITY: 100KG - 200tf
NON-LINEARITY: ±0.023% FS
RATING: IP68

available

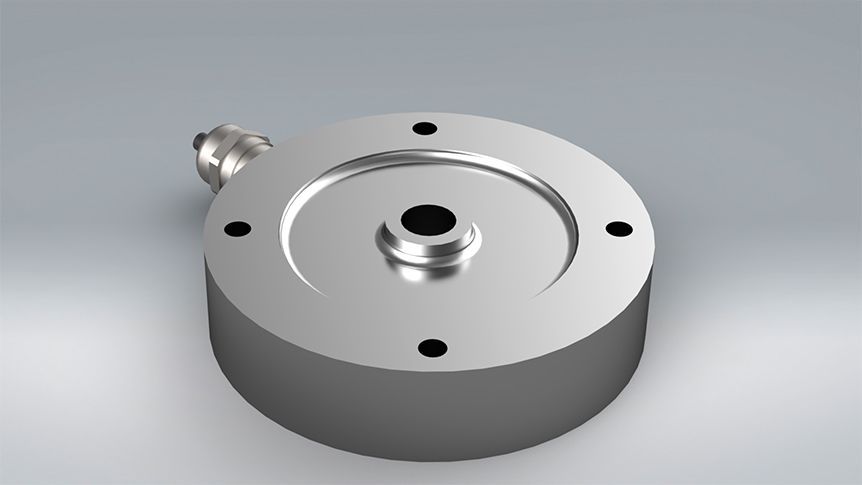

a 3D designed model of the DIA compression load cell with a diaphragm design from PCM.

DIA

May 19, 2024
CAPACITY: 500KG - 1000KG
NON-LINEARITY: ±1% FS
RATING: IP65

available

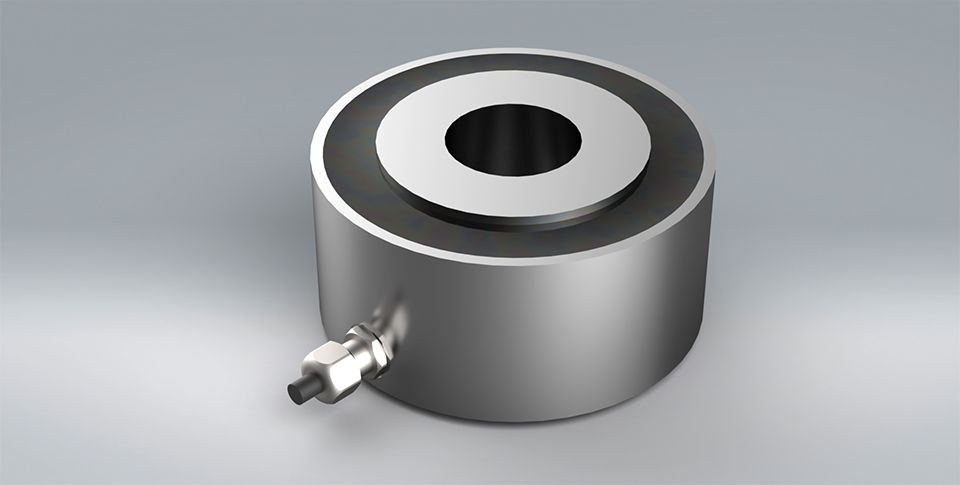

A metallic FW compression load cell with a compact bobbin style design manufactured from stainless steel.

FW

May 18, 2024
CAPACITY: 4TF - 80TF
NON-LINEARITY:±1% FS
RATING: IP67

available
3D model of a silver stainless steel CLS high performance column style compression load cell.

ALC

May 17, 2024
CAPACITY: 15TF – 200TF
NON-LINEARITY:±1% FS
RATING: IP65

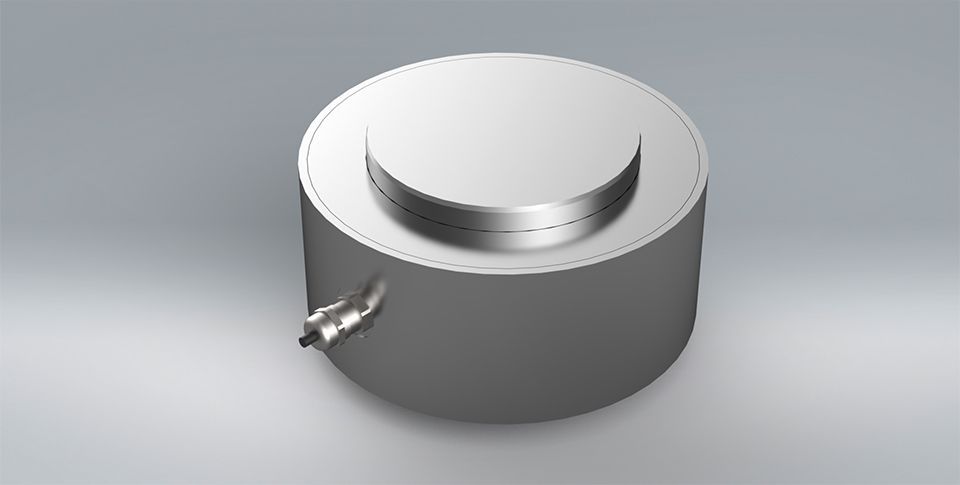

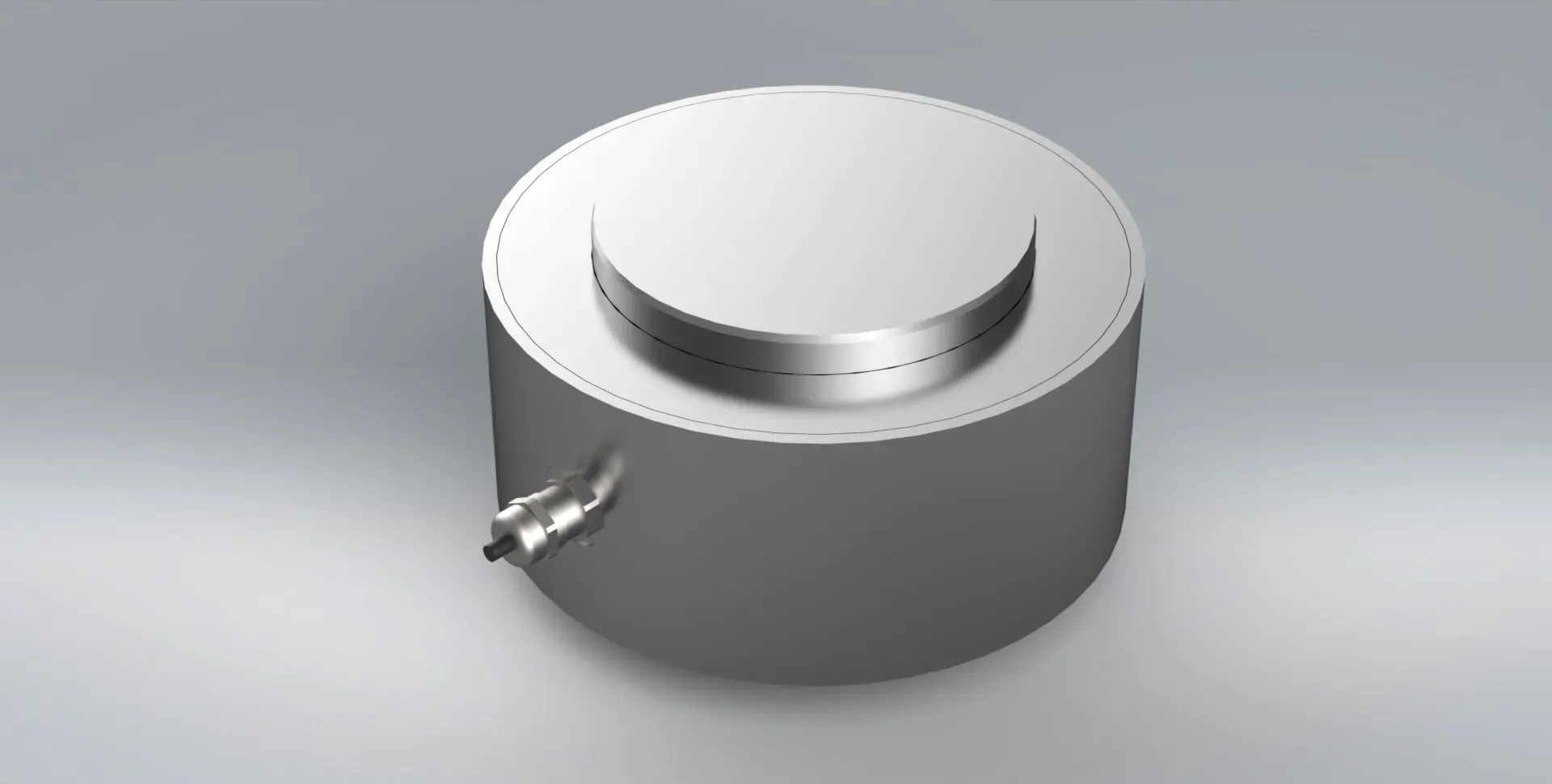

A metallic steel 3D model of a CNC heavy-duty, low-profile compression load cell on a lighter grey background.

CNC

May 16, 2024
CAPACITY: 75TF – 500TF
NON-LINEARITY: ±0.5% FS
RATING: IP65

available

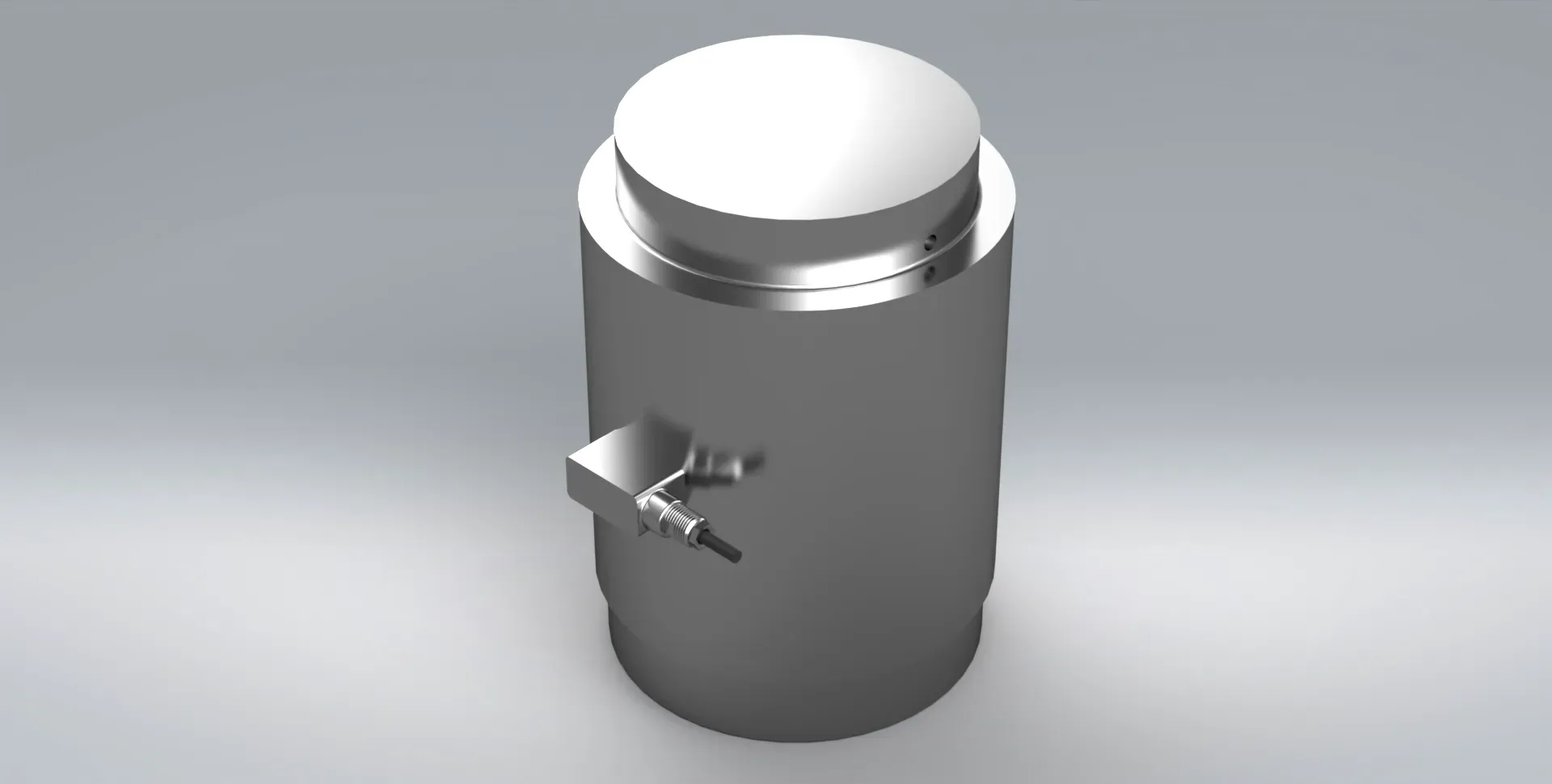

3D model of a silver stainless steel CLS high performance column style compression load cell.

CLS

May 15, 2024
CAPACITY: 30TF – 500TF
NON-LINEARITY: ±0.023% FS
RATING: IP68

available

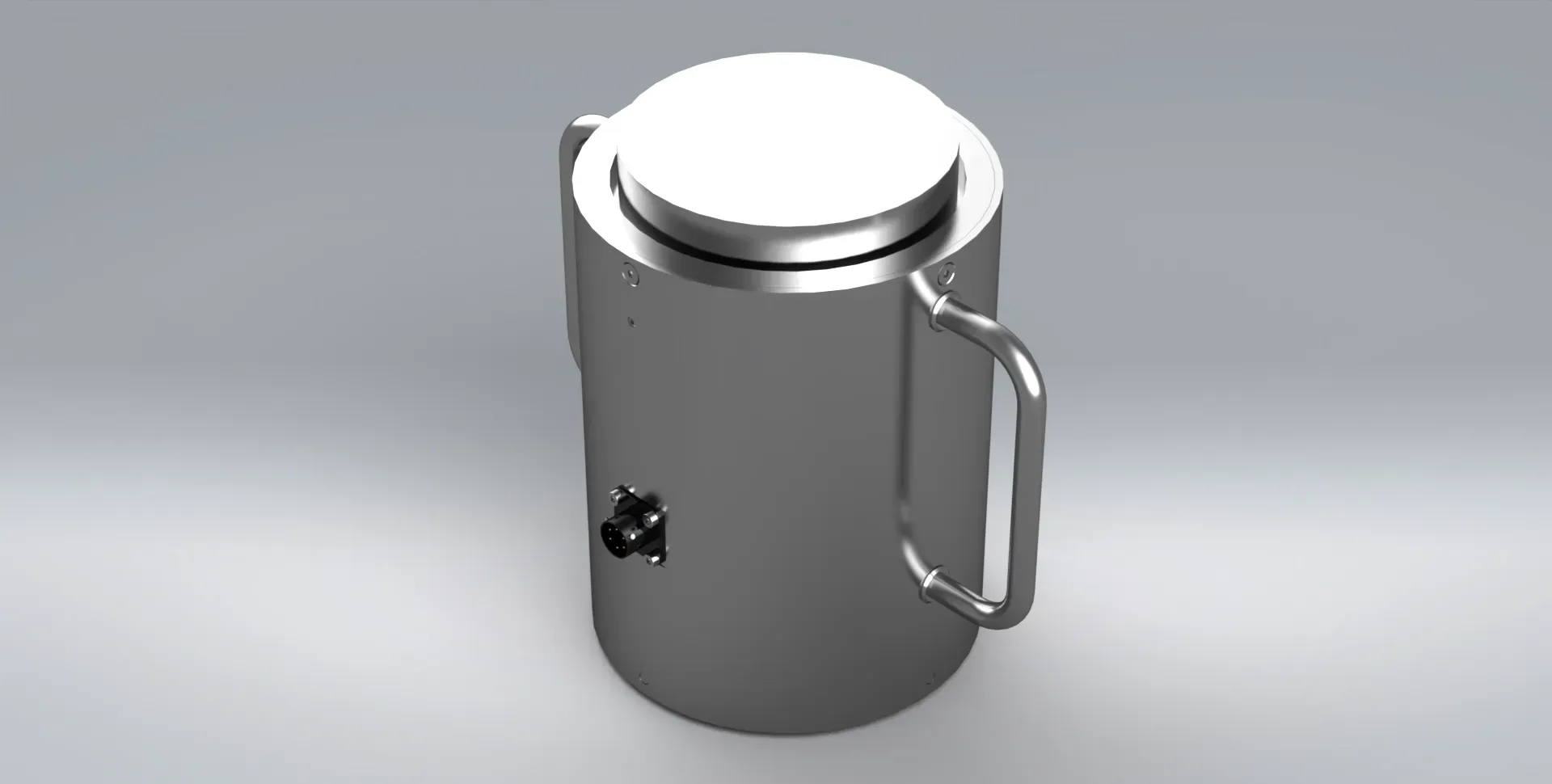

3D design of PCM's CN column compression load cell made from stainless steel on a grey background.

CN

May 14, 2024
CAPACITY: 50TF– 1000TF
NON-LINEARITY: ±0.25% FS
RATING: IP65

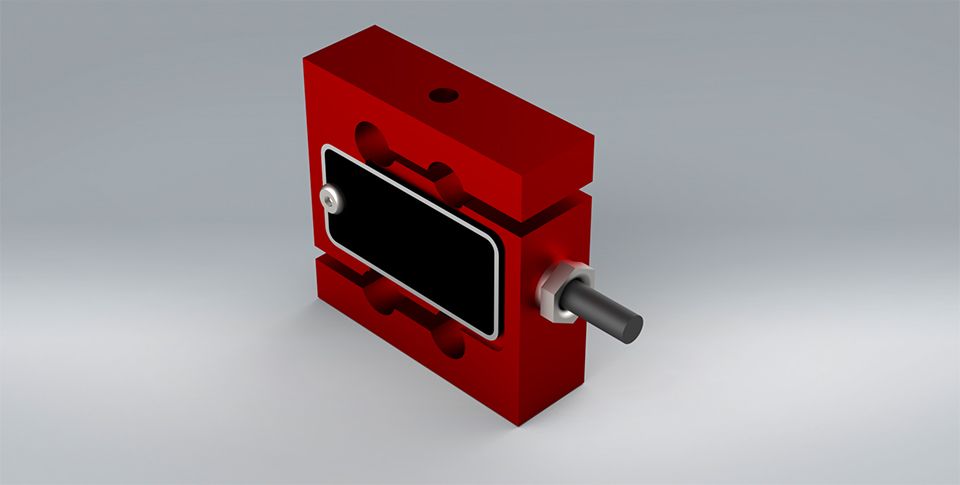

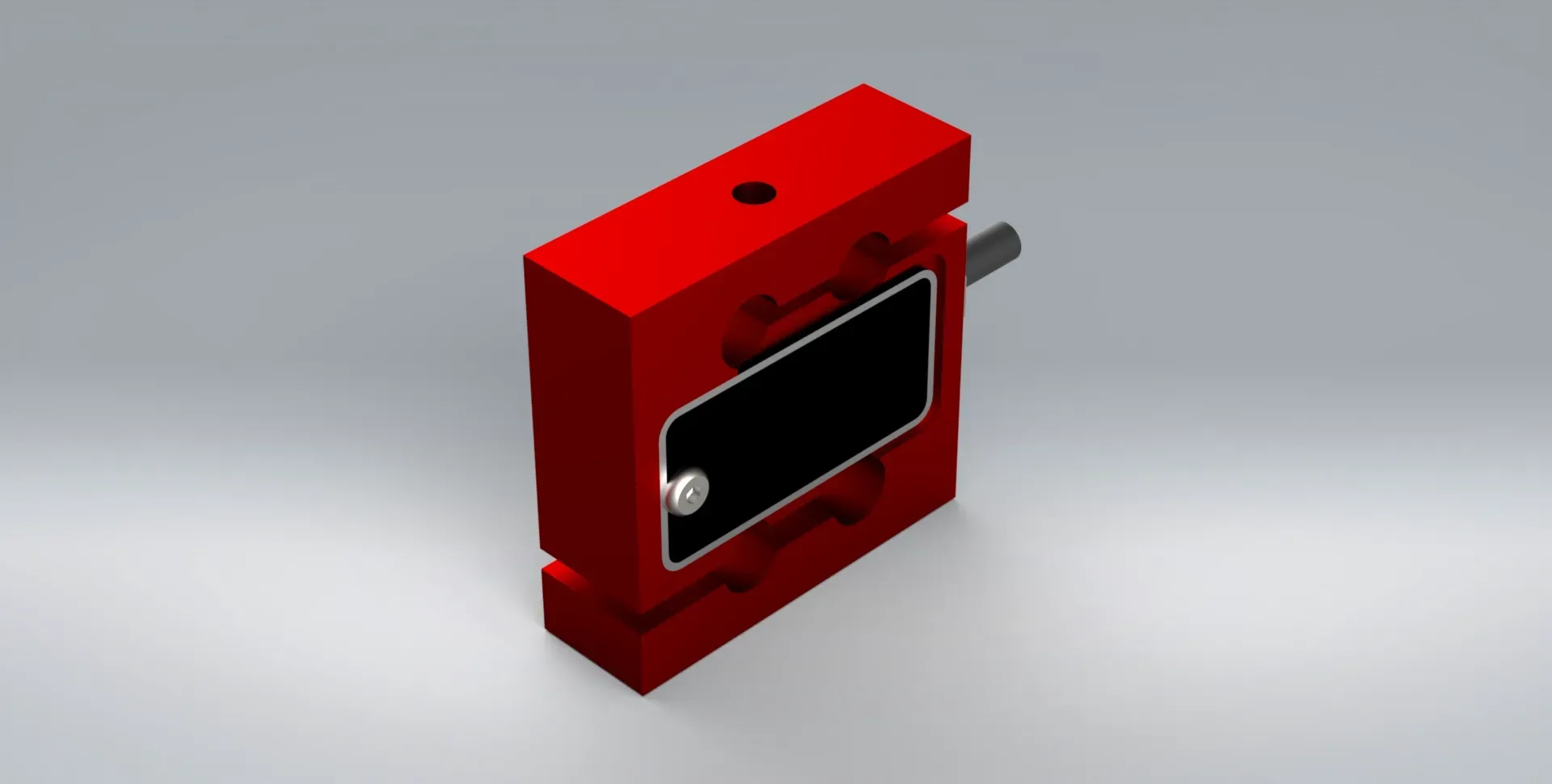

Red 3D model of the TCA low profile bi-directional S-Type Load Cell on a light grey background.

TCA

May 13, 2024
CAPACITY: 1KG – 50KG
NON-LINEARITY: ±0.03% FS
RATING: IP20

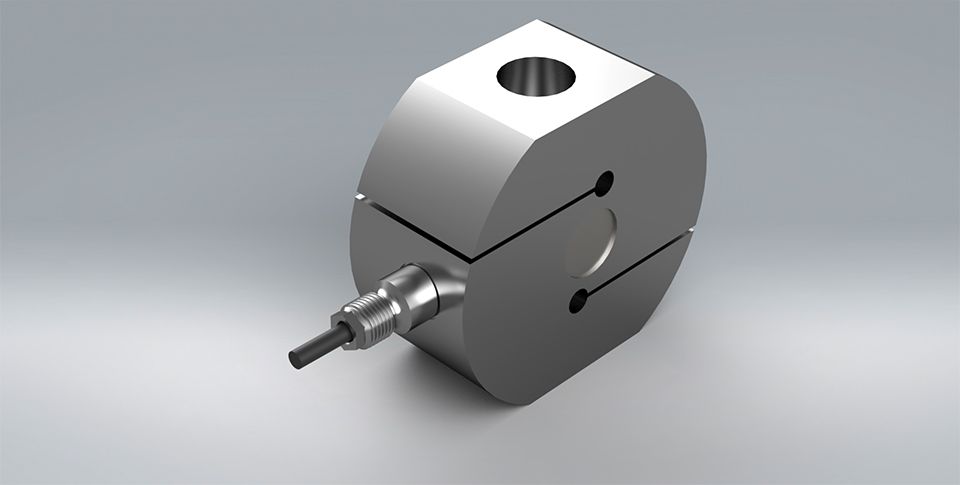

A 3d model of a TS stainless steel S-Type load cell, used for compression or tension measurement in static or dynamic testing

TS

By Connor • May 12, 2024
CAPACITY: 10KG-10,000KG
NON-LINEARITY: N/A
RATING: IP65/IP68

available

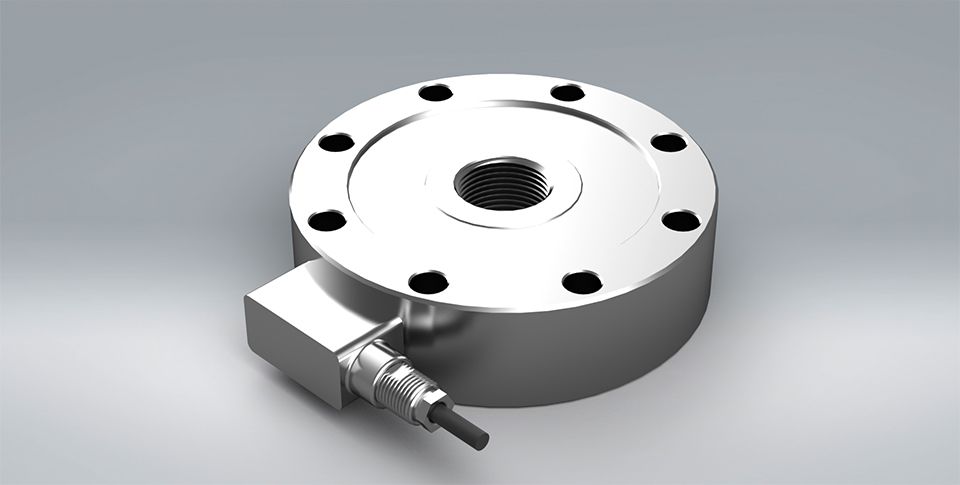

A close up design of the TC4 bi-directional pancake load cell for tension and compression measurement from stainless steel.

TC4

May 11, 2024
CAPACITY: 0.5TF – 500TF
NON-LINEARITY: ±0.05% FS
RATING: IP67

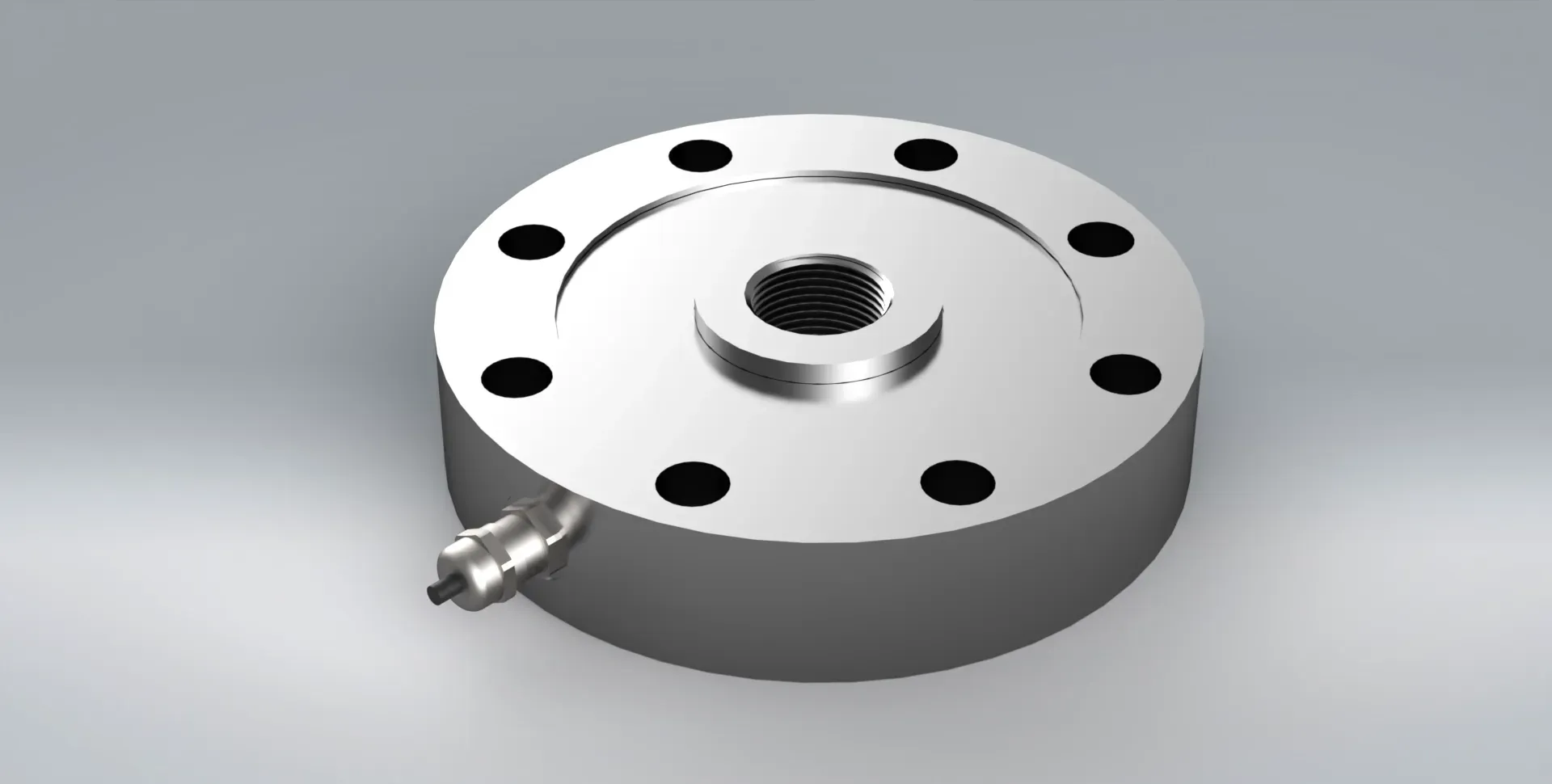

3D model of the PLC bi-directional pancake load cell on a plain grey background.

PLC

May 10, 2024
CAPACITY: 0.5kN – 1000kN
NON-LINEARITY: ±0.15% FS
RATING: IP65

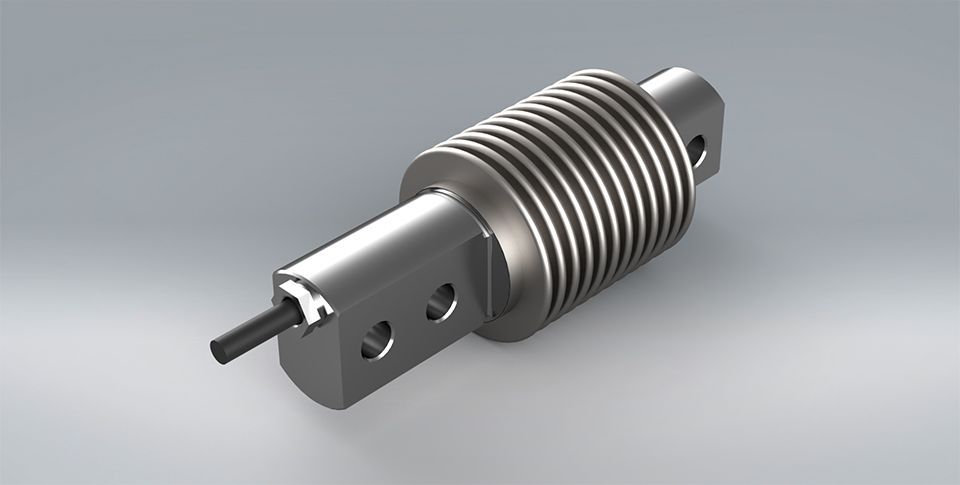

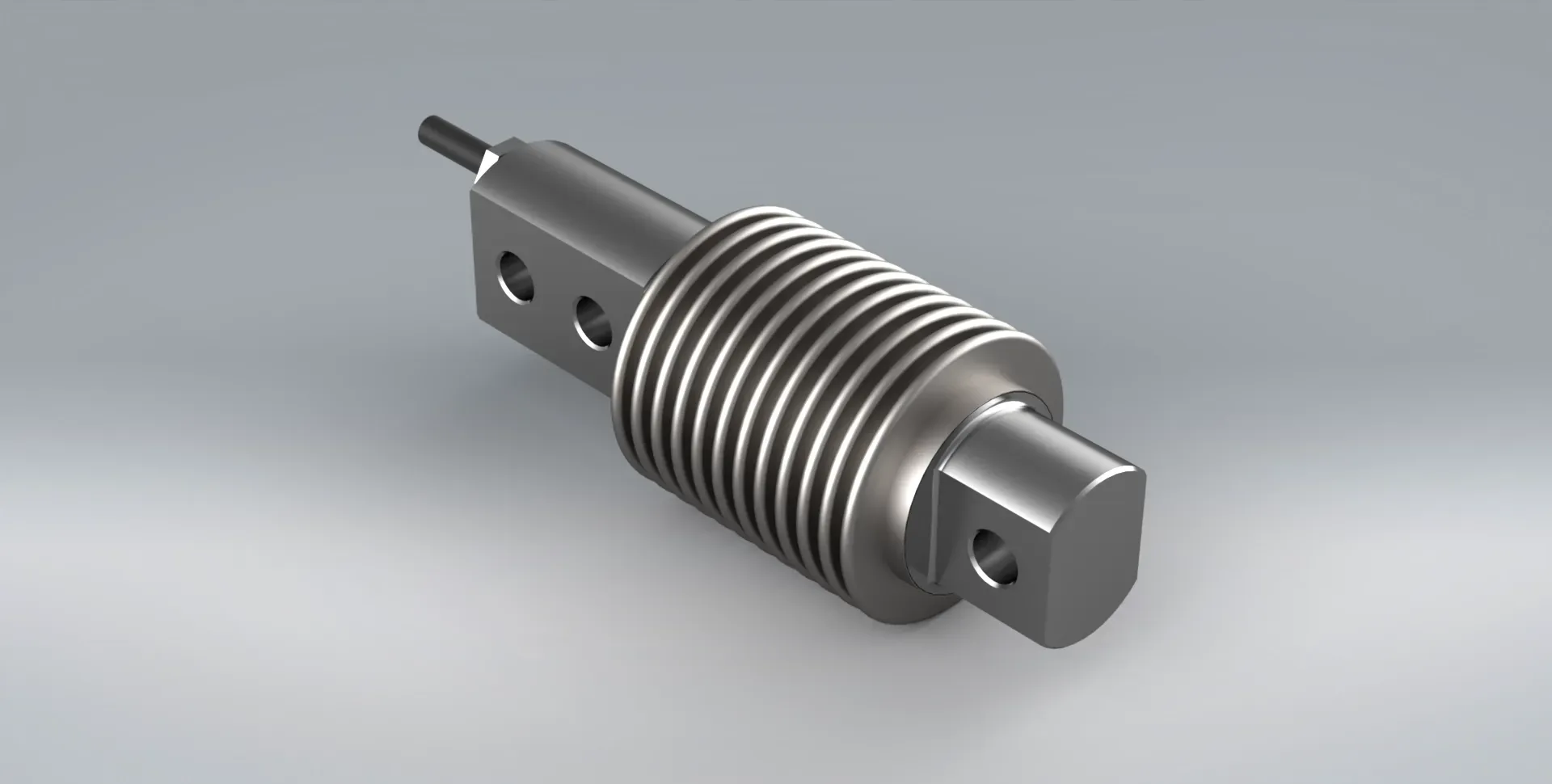

A close up of the stainless steel F1 cantilever load cell on a grey background, hermetically sealed against moisture.

F1

May 9, 2024
CAPACITY: 2.5KG – 200KG
NON-LINEARITY: ±0.026% FS
RATING: IP67

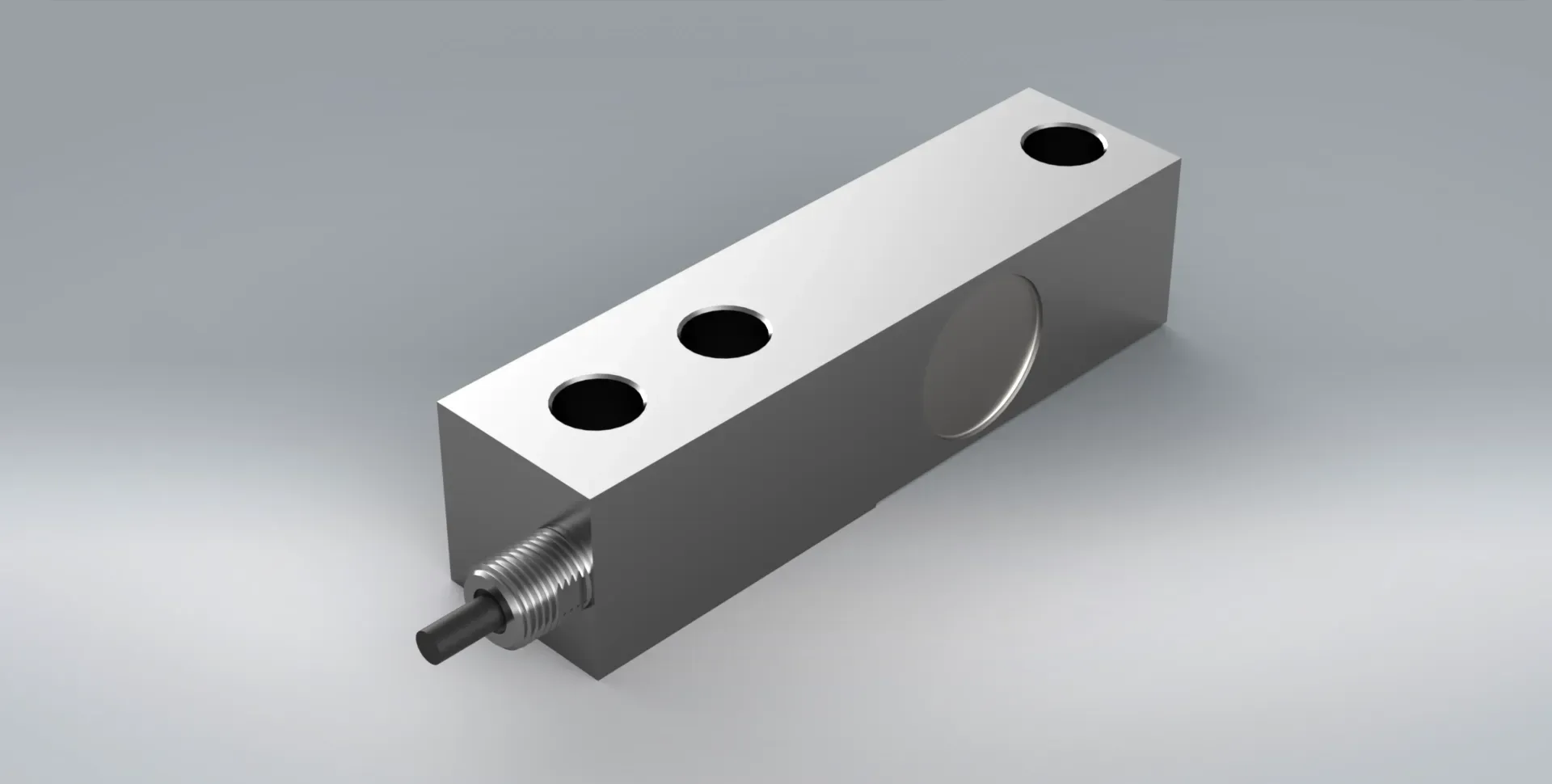

A 3d model of the FT1 high accuracy shear beam load cell, laser welded and manufactured from stainless steel.

FT1

May 8, 2024
CAPACITY: 350KG-7500KG
NON-LINEARITY: ±0.024% FS
RATING: IP68

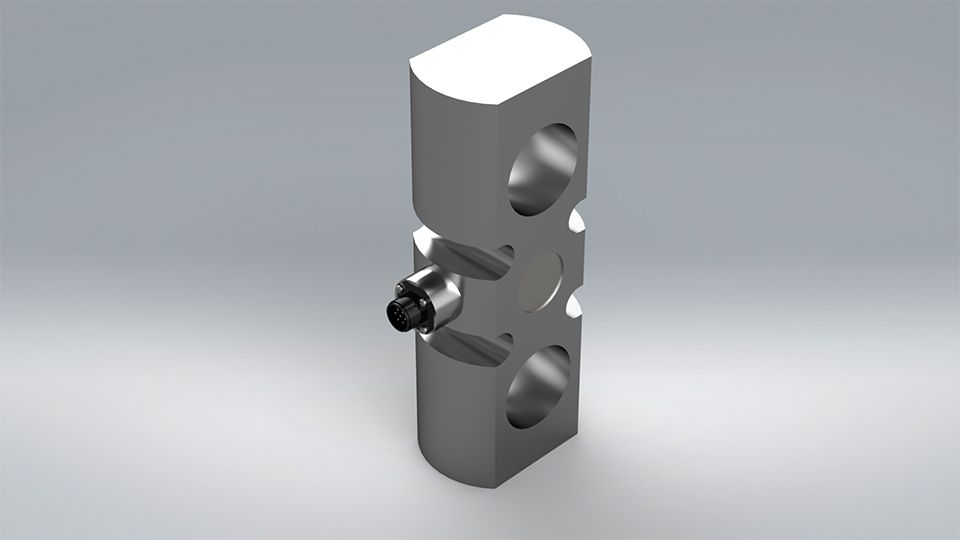

A 3D model of the D200 tension link load cell, used to measure tension and designed with 2 holes on either side.

D200

May 7, 2024
CAPACITY: 20TF-100TF
NON-LINEARITY: ±0.1% FS
RATING: IP65

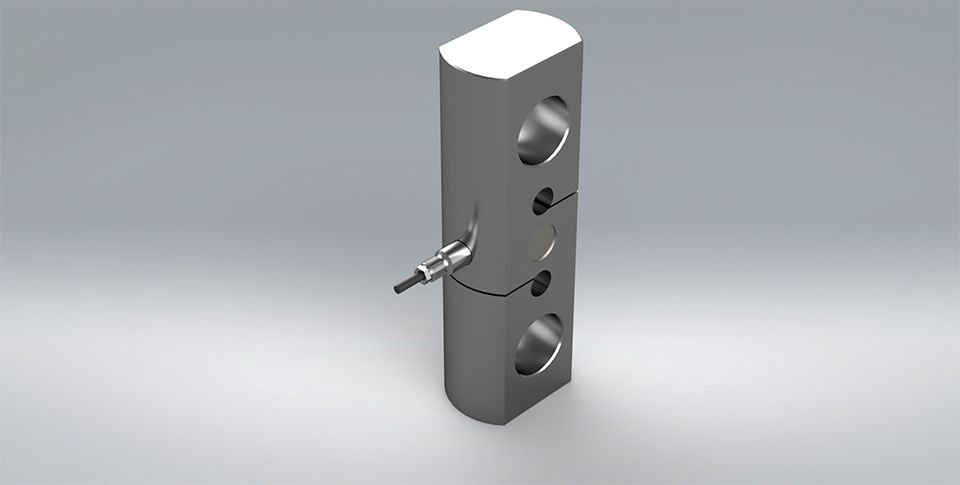

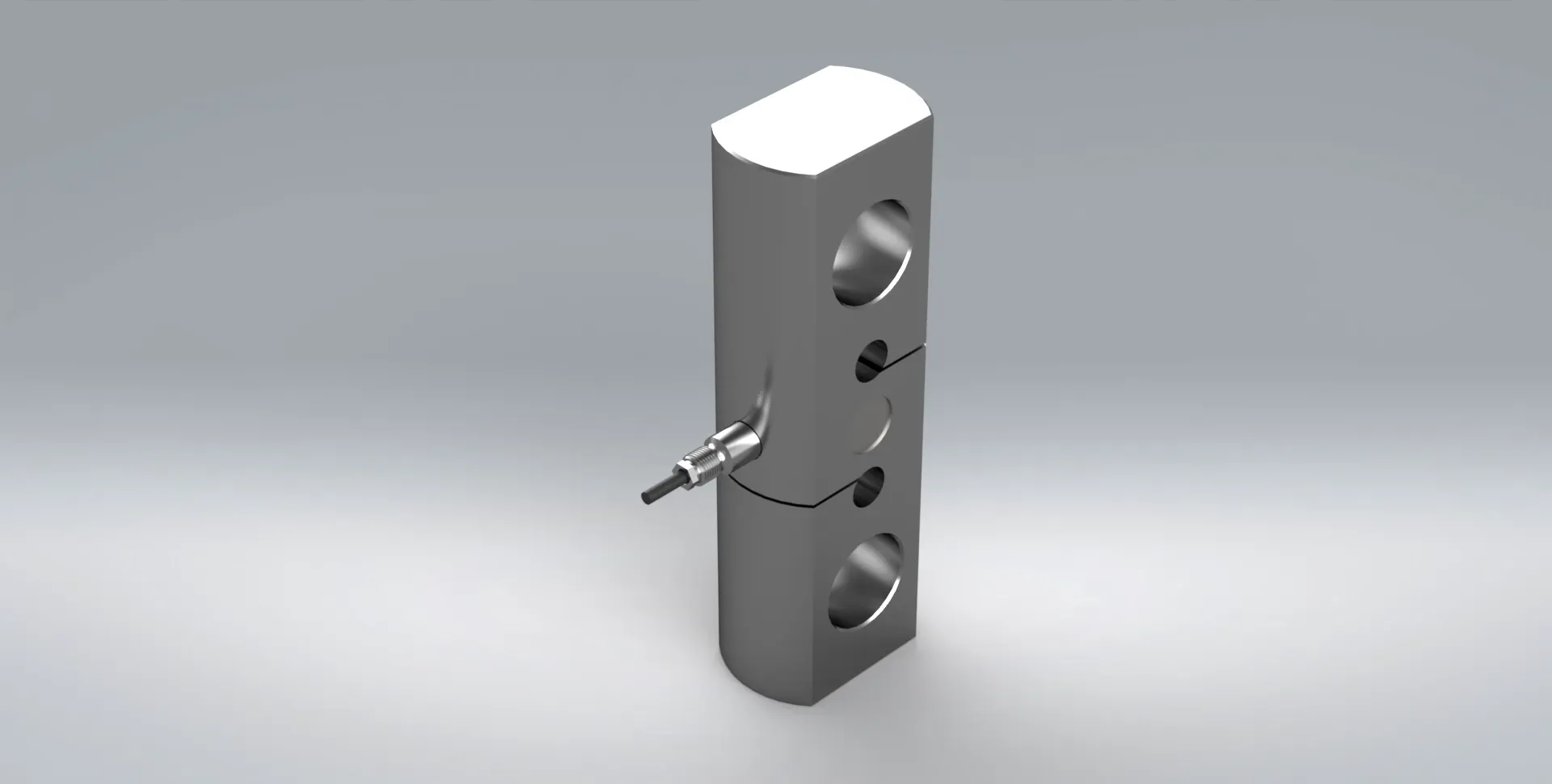

Design of the T20 standard tension link load cell. Laser welded stainless steel assembly on a plain grey background.

T20

May 7, 2024
CAPACITY: 5TF-20TF
NON-LINEARITY: ±0.023% FS
RATING: IP68

available

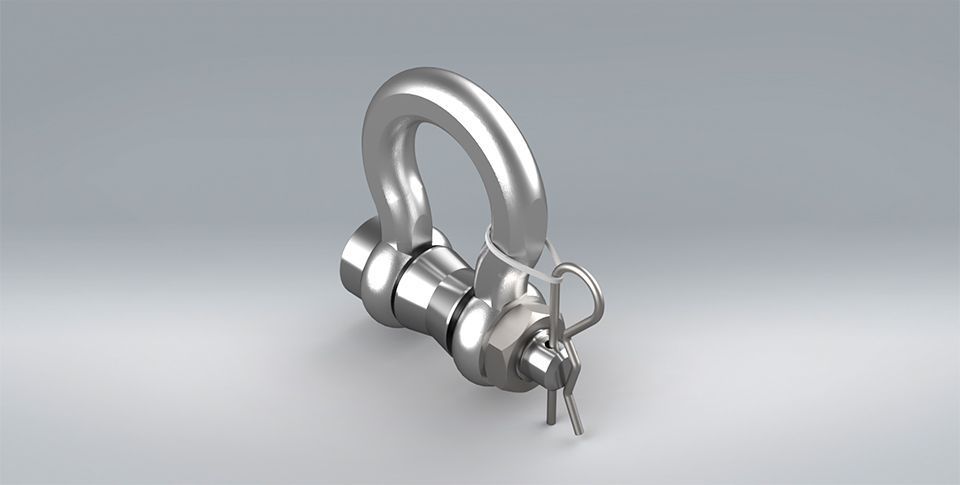

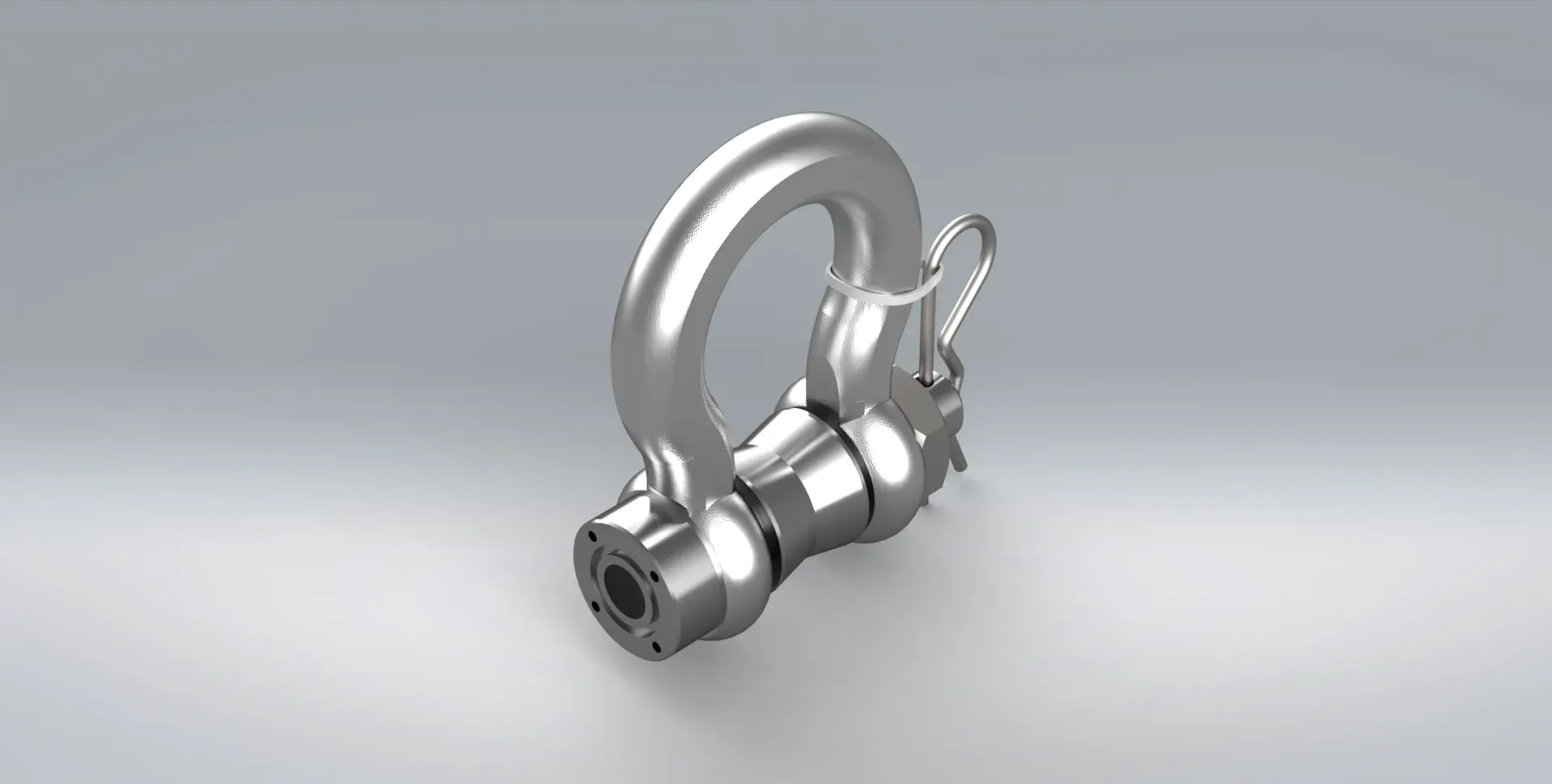

A 3d model of PCM's SLP load shackle, used for tension measurement. The load shackle is stainless steel on a grey background.

SLP

May 6, 2024
CAPACITY: 2TF-100TF
NON-LINEARITY: 0.25-2% FS
RATING: IP67

available

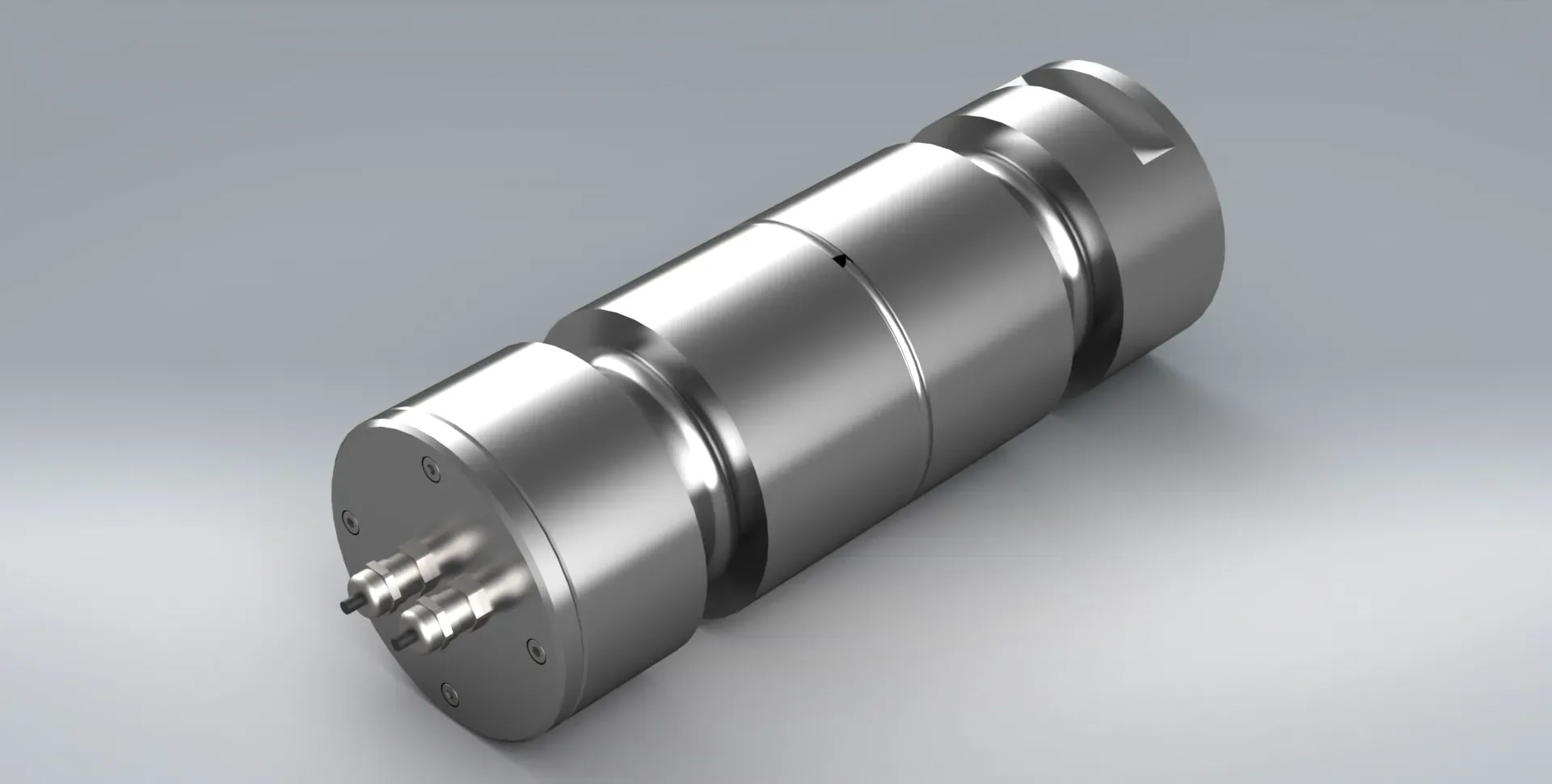

A 3D model of load pins designed, manufactured, strain gauged and calibrated by Procter and Chester Measurements.

LP

May 6, 2024
CAPACITY: BUILT TO ORDER
NON-LINEARITY: ±0.25-2% FS
RATING: IP67

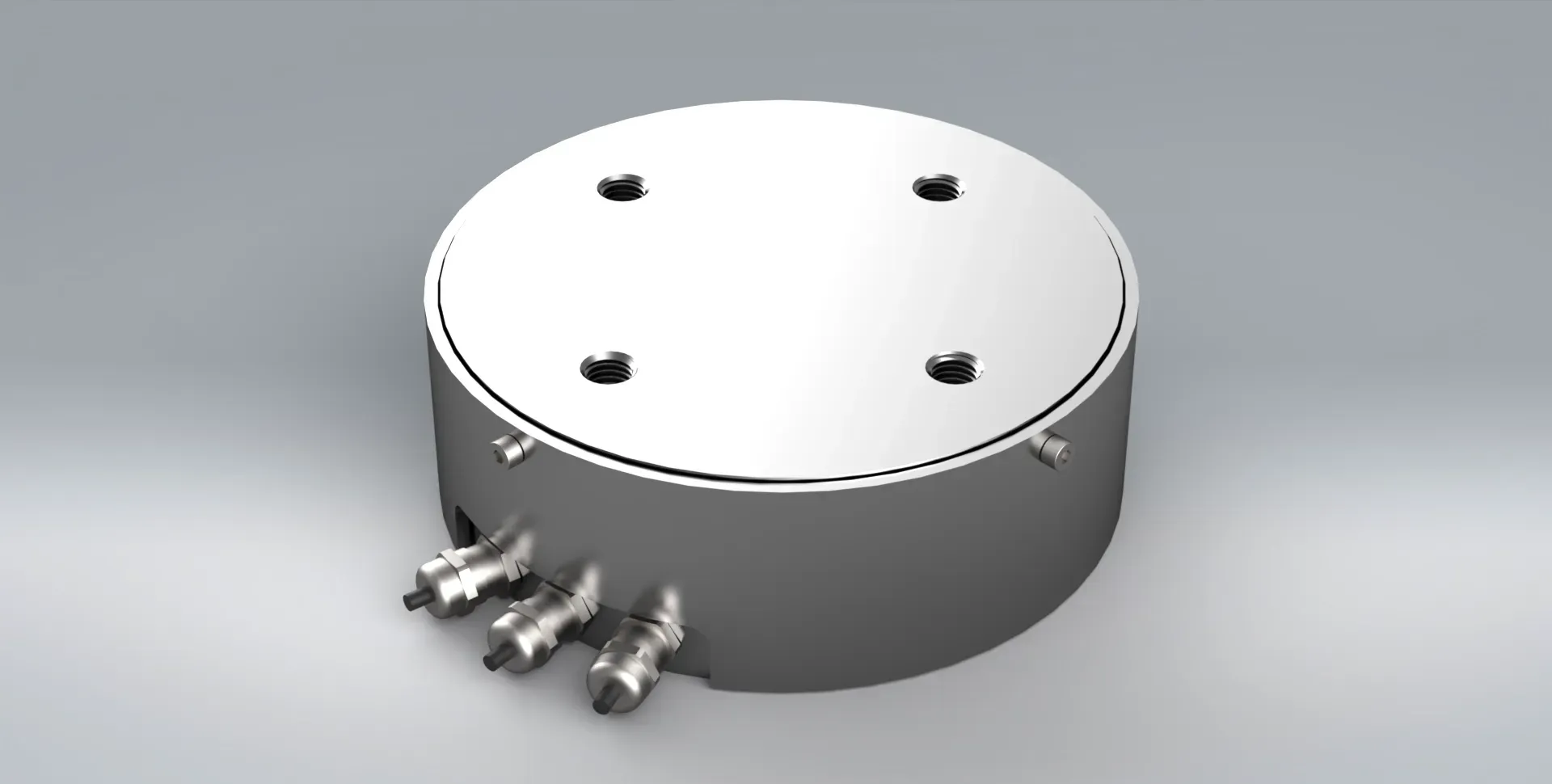

The MAL3 multi-axis transducer used to measure triaxial force accurately. Always designed for customer requirements.

MAL3

May 5, 2024
CAPACITY: N/A
NON-LINEARITY: N/A
RATING: N/A

available
Metallic 3D model of a MAL6 multi-axis or 6-axis load cell that measures 3 forces and 3 moments on a light grey background.

MAL6

May 4, 2024
CAPACITY: N/A
NON-LINEARITY: N/A
RATING: N/A

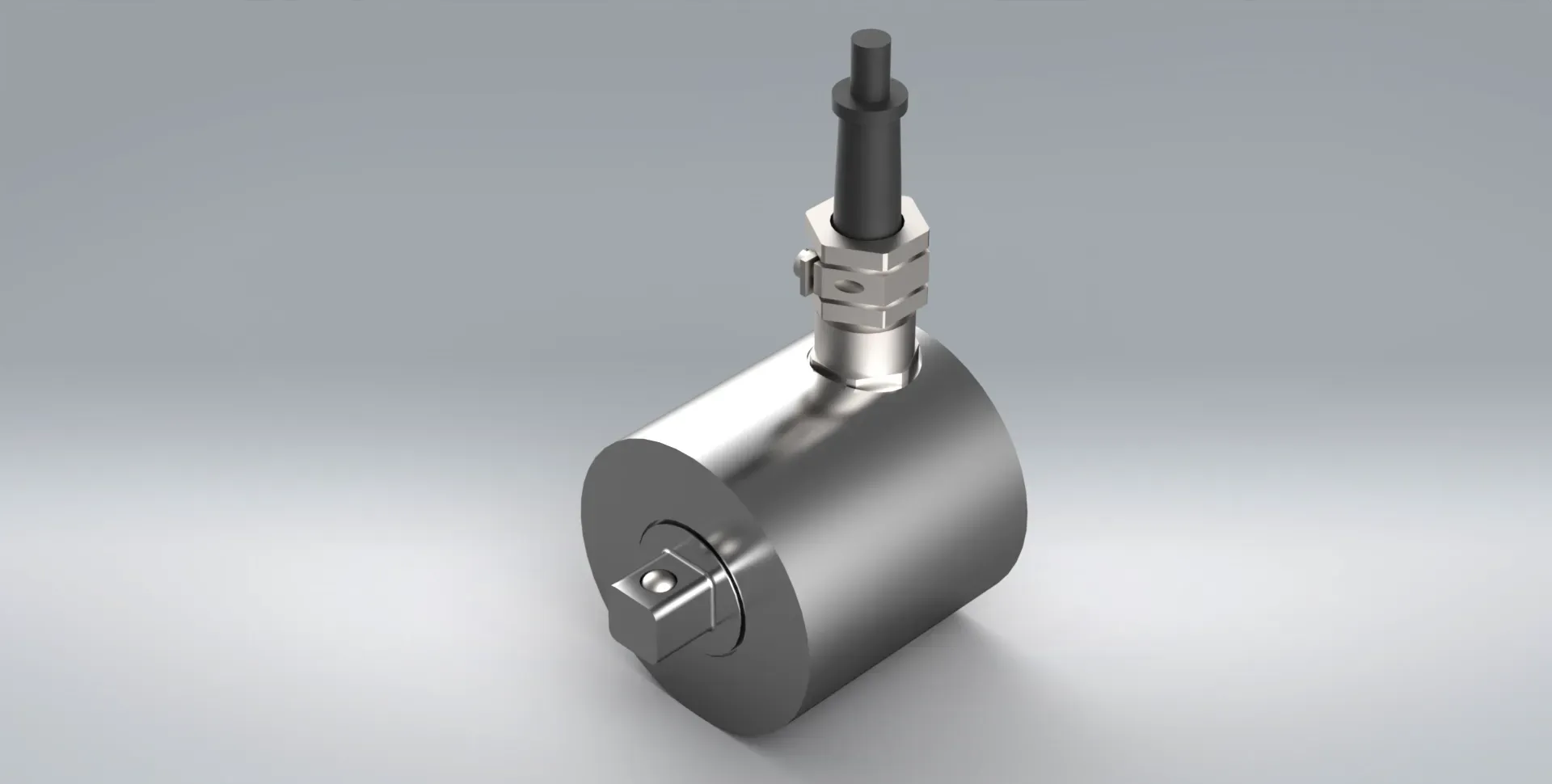

3D model of the TRS torque sensor, used to measure static torsion. It is made from stainless steel on a grey background.

TRS

May 3, 2024
CAPACITY: 0.5Nm-1000Nm
NON-LINEARITY: ±0.2% FS
RATING: IP40
A 3D model of the TRX torque transducer with a flange design for measuring static torsion made from stainless steel.

TRX

May 2, 2024
CAPACITY: 50Nm-5000Nm
NON-LINEARITY: ±0.03% FS
RATING: IP67

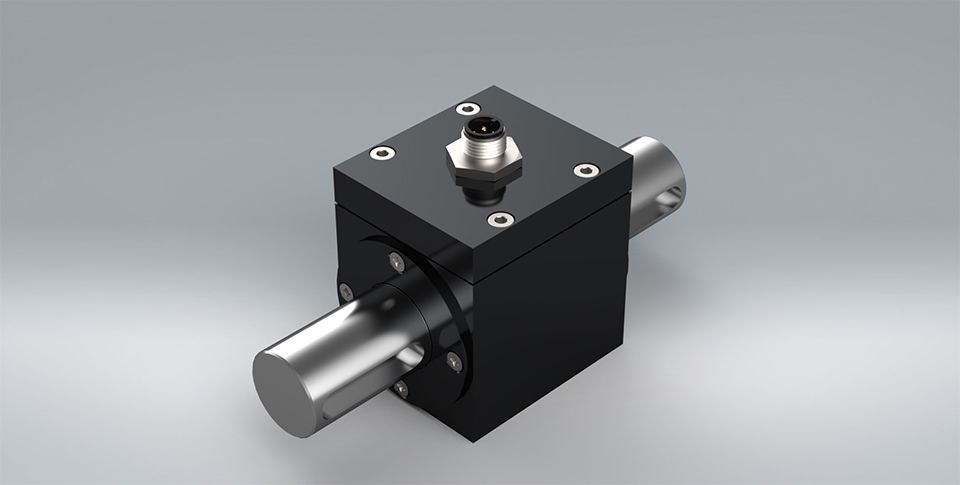

A black box design, RT2 rotating torque sensor with a key slot design, used to measure rotational torsion up to 4000rpm.

RT2

May 1, 2024
CAPACITY:0.5Nm – 5000Nm
NON-LINEARITY: ±0.2% FS
RATING: IP40

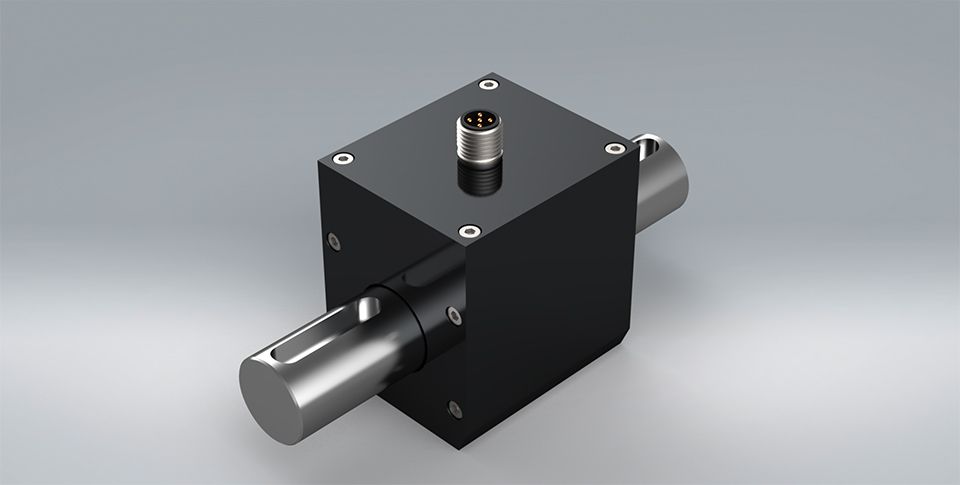

A black 3D model of a RT8 contactless rotating torque transducer for measuring rotational torsion on a light grey background.

RT8

April 30, 2024
CAPACITY: 0.5Nm-5000Nm
NON-LINEARITY: ±0.2% FS
RATING: IP40

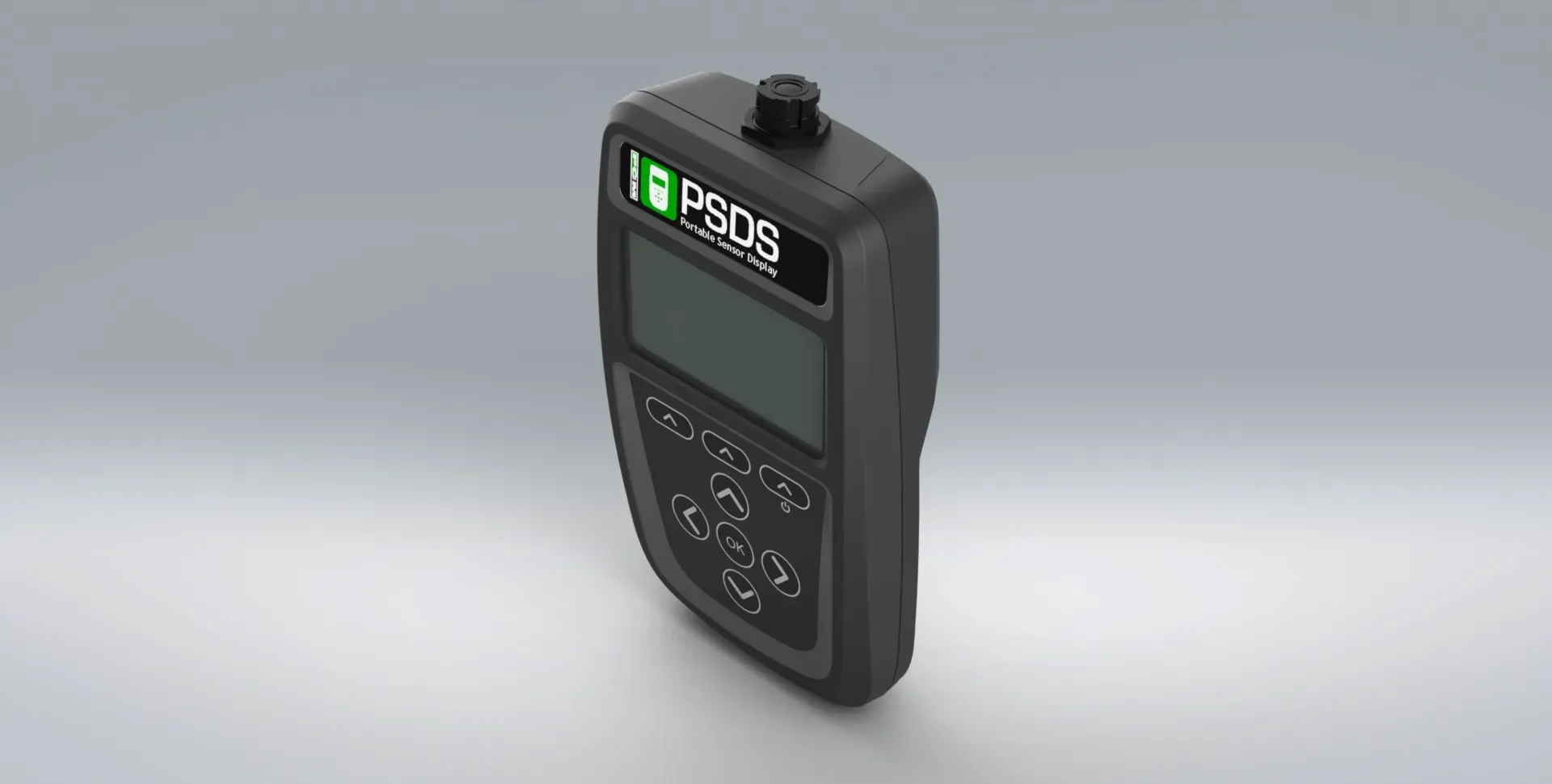

A black PSDS display device with a screen and touchpad of arrows and buttons.

PSDS

April 29, 2024
OUTPUT: USB/DISPLAY
POWER SUPPLY: 2XAA/USB
RATING: IP64

available

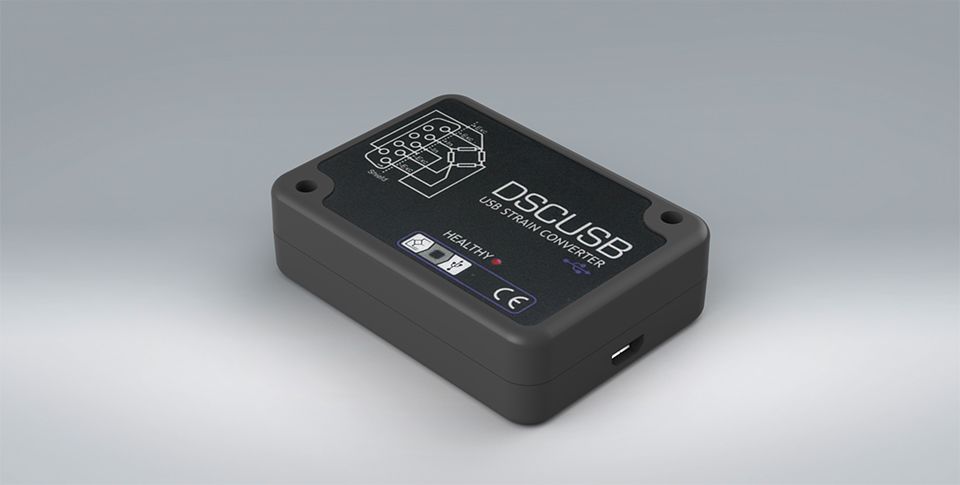

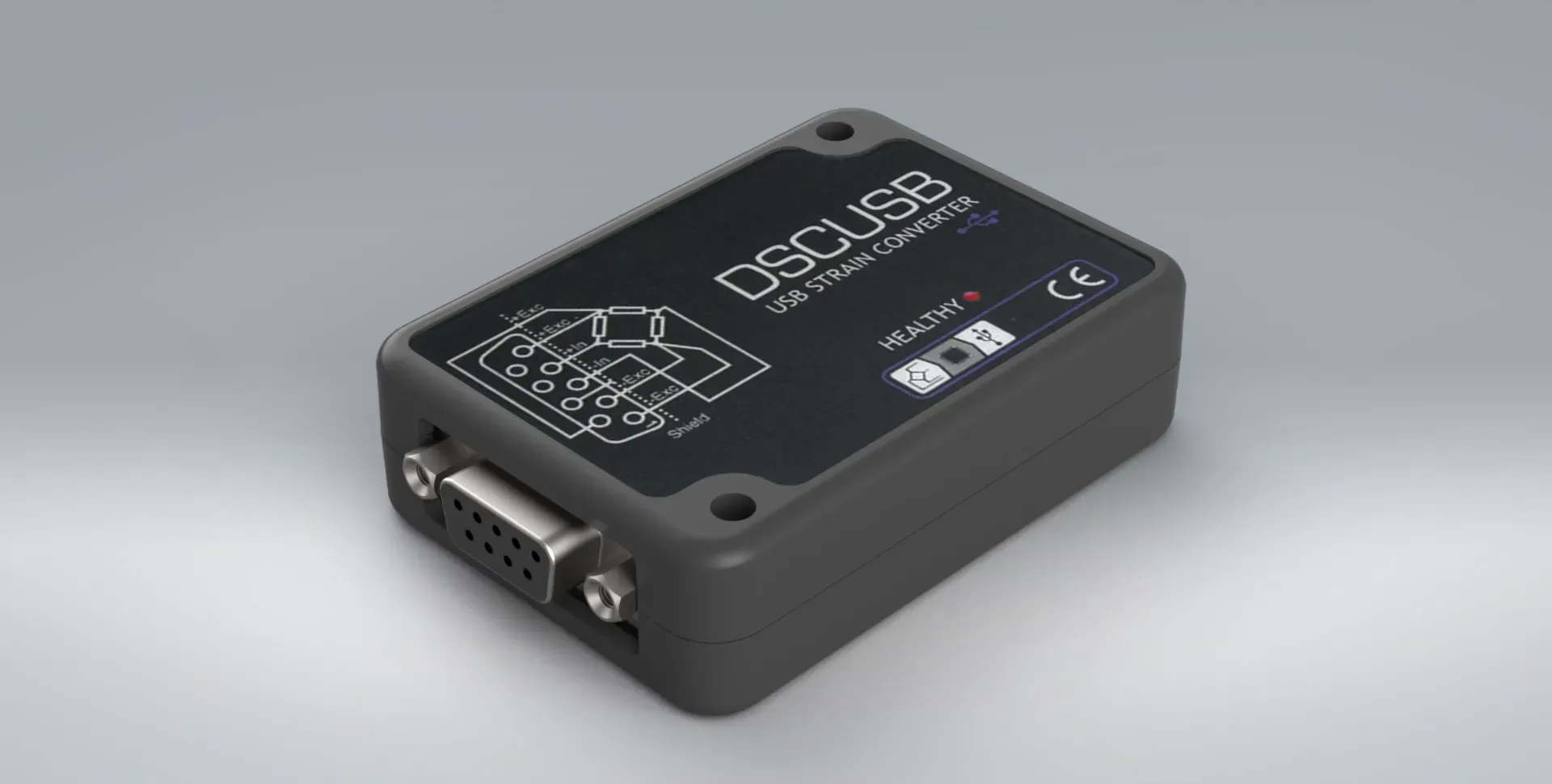

Small, black DSCUSB strain gauge to USB converter on a plain grey backdrop with clear readings on the screen.

DSCUSB

April 28, 2024
OUTPUT: USB
POWER SUPPLY: USB
RATING: IP50

available

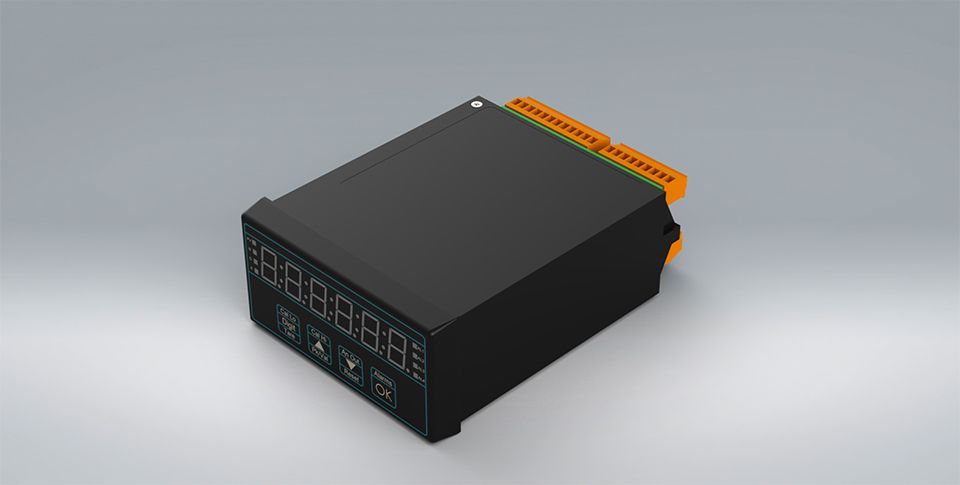

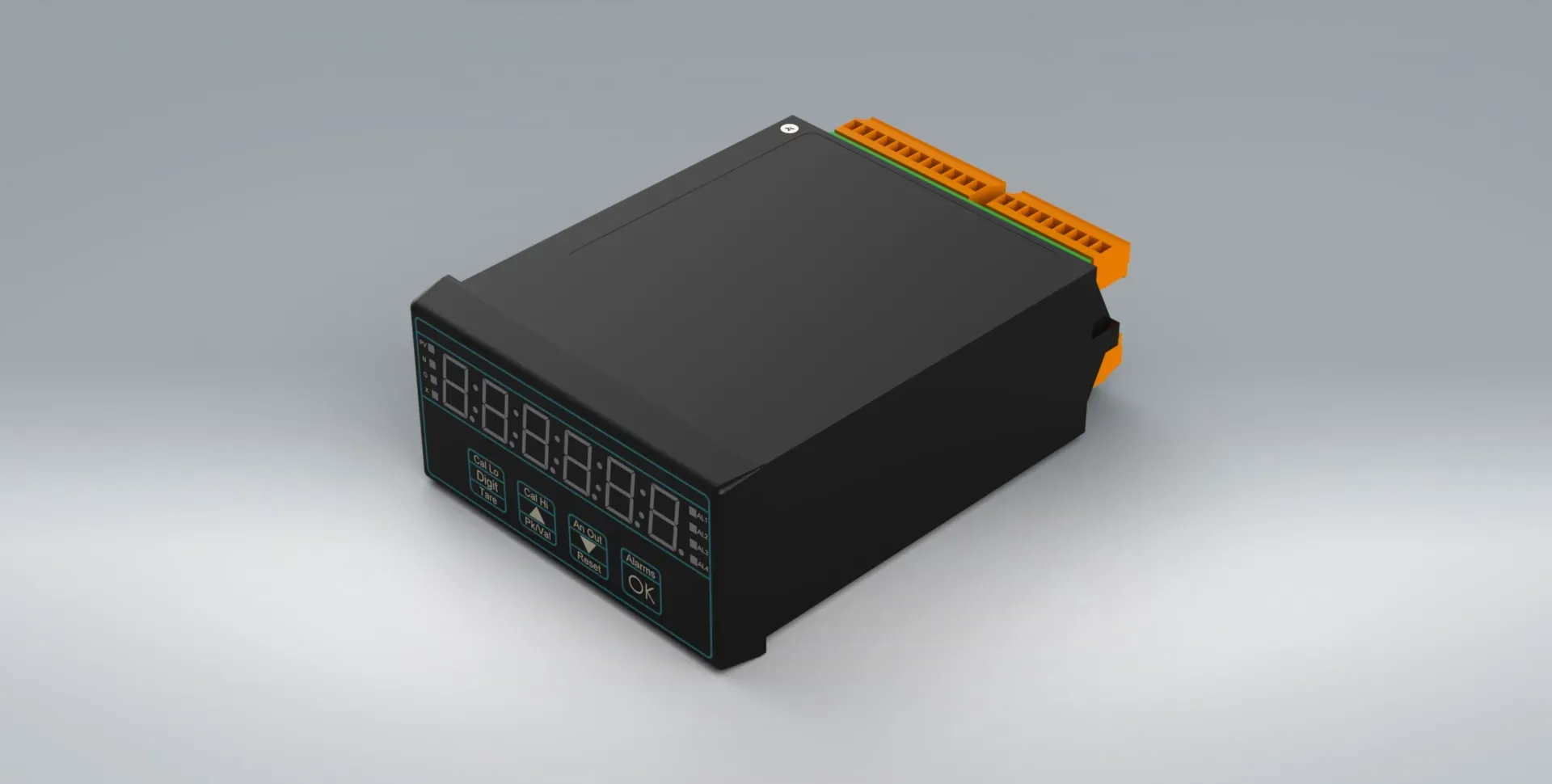

The INT4-L weighing indicator device for load cells. It is a black box with a clear readable screen and orange components.

INT4

April 27, 2024
OUTPUT: DISPLAY
POWER SUPPLY: 110-240VAC/11-30VDC
RATING: IP65

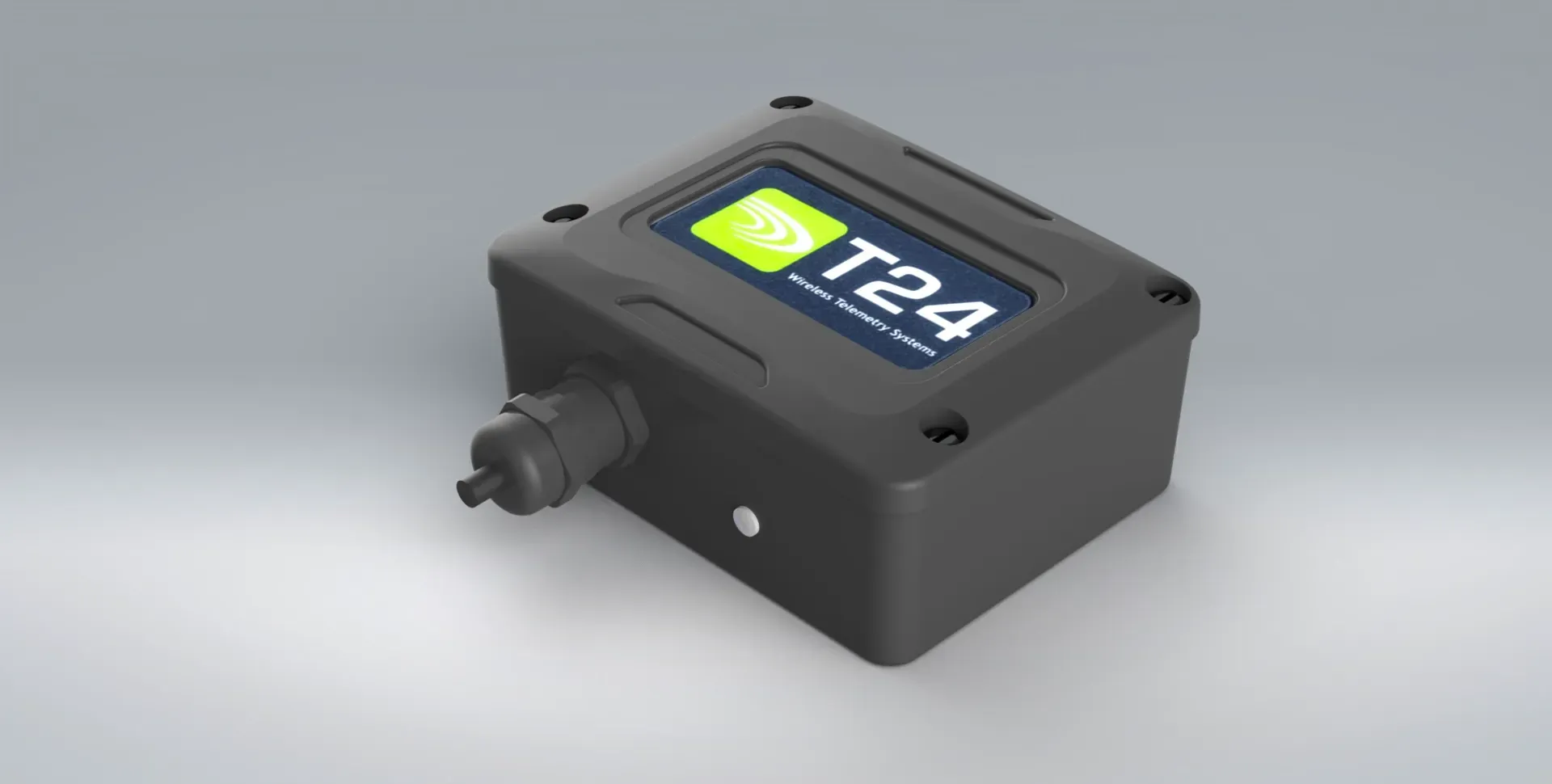

A black box T24 wireless telemetry sensor system for industrial sensor applications, sat on a grey background.

T24

April 26, 2024
OUTPUT: 2.4GHz/DISPLAY
POWER SUPPLY: BATTERY/USB
RATING: IP50-IP67

available

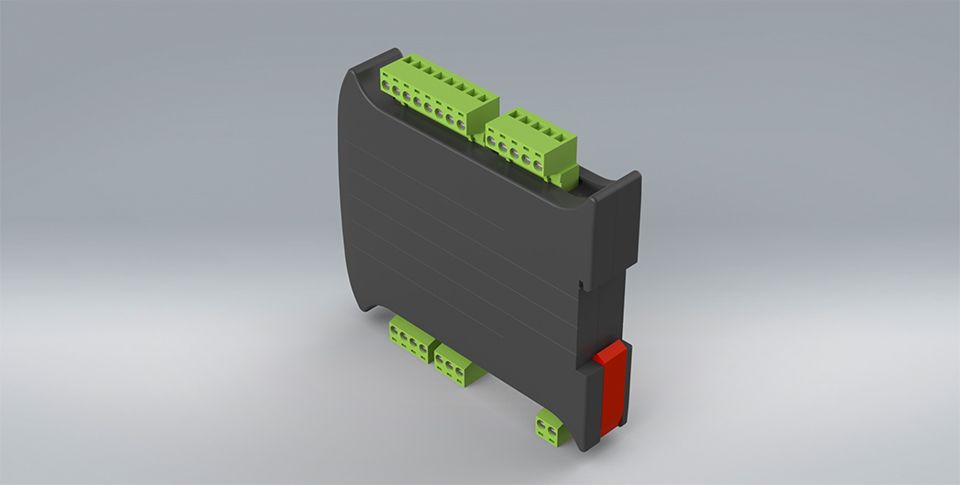

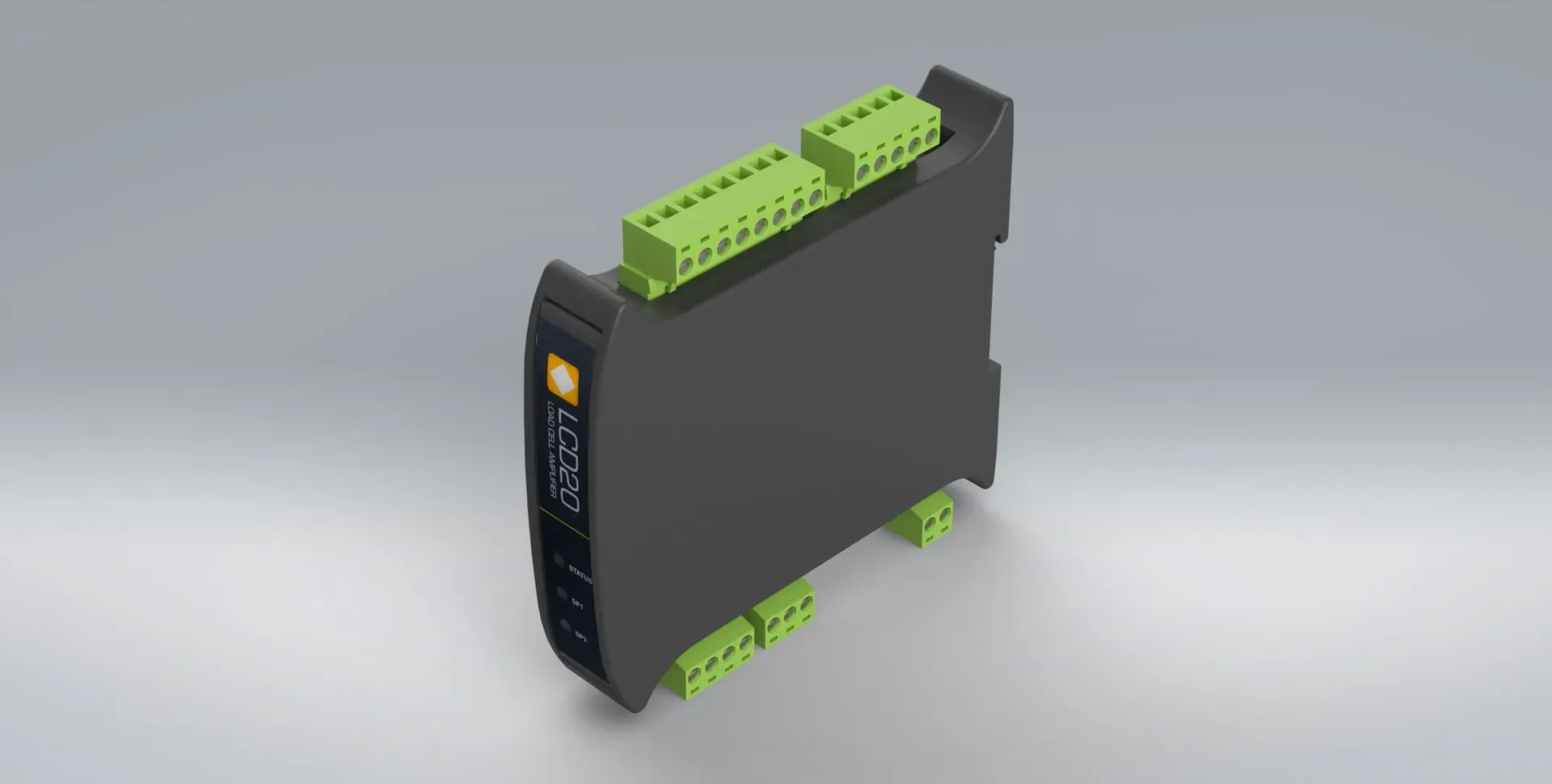

3D model of the LCD20 DIN rail mount strain gauge bridge amplifier. It has a black central component with green and red links

LCD20

April 25, 2024
OUTPUT: 4-20mA/0-10V
POWER SUPPLY: 3-32VDC
RATING: IP20

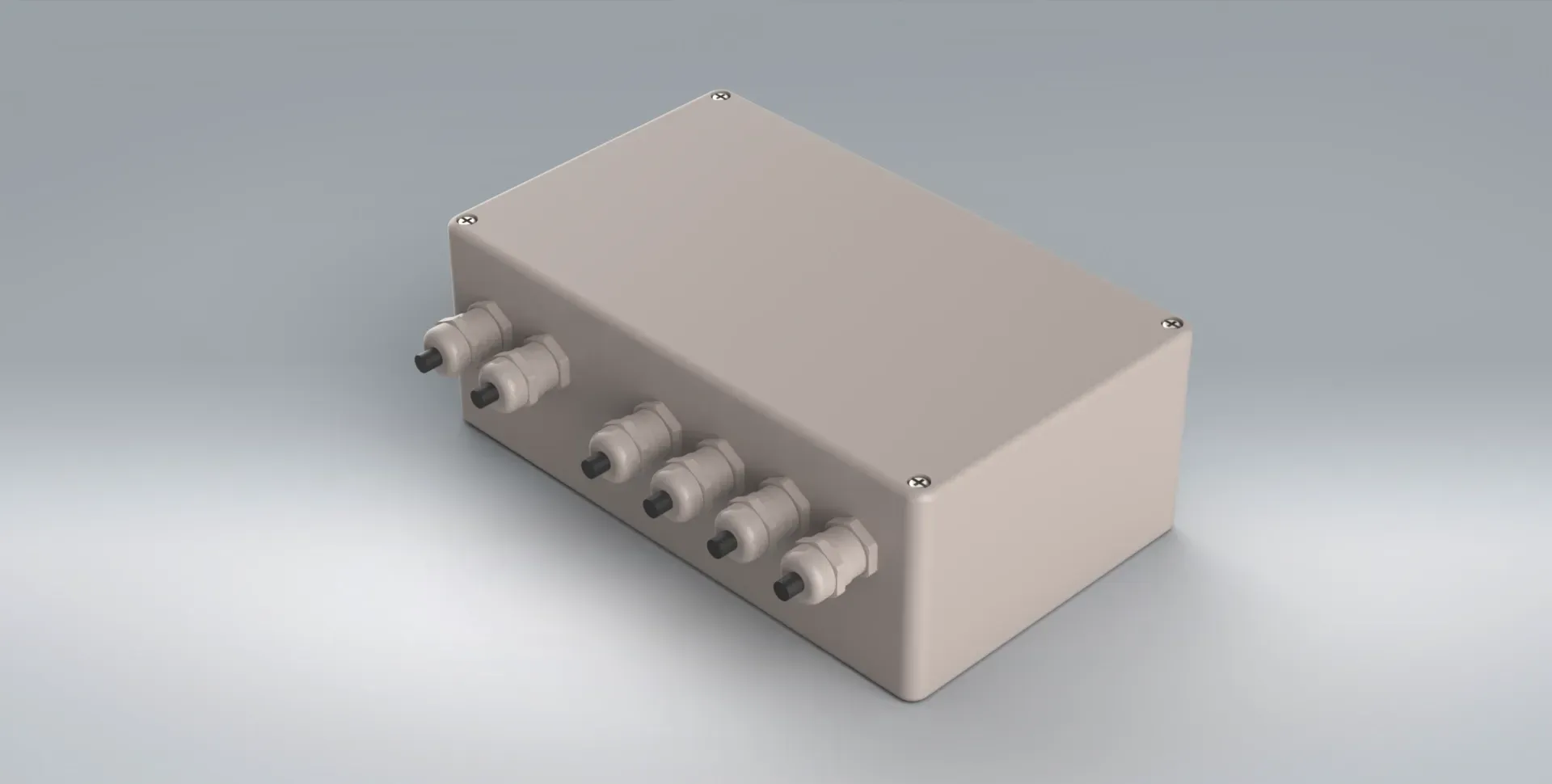

Pale coloured model of the LCA20 digital signal conditioning amplifier for single and multiple load cell applications.

LCA20/LCB20

April 24, 2024
OUTPUT: 4-20mA/0-10V
POWER SUPPLY: 100/230VAC, 9-32VDC
RATING: IP65

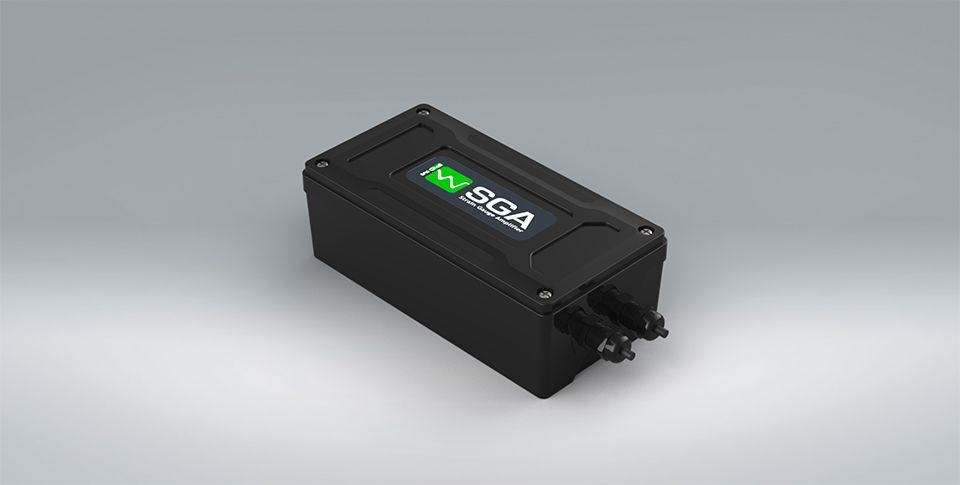

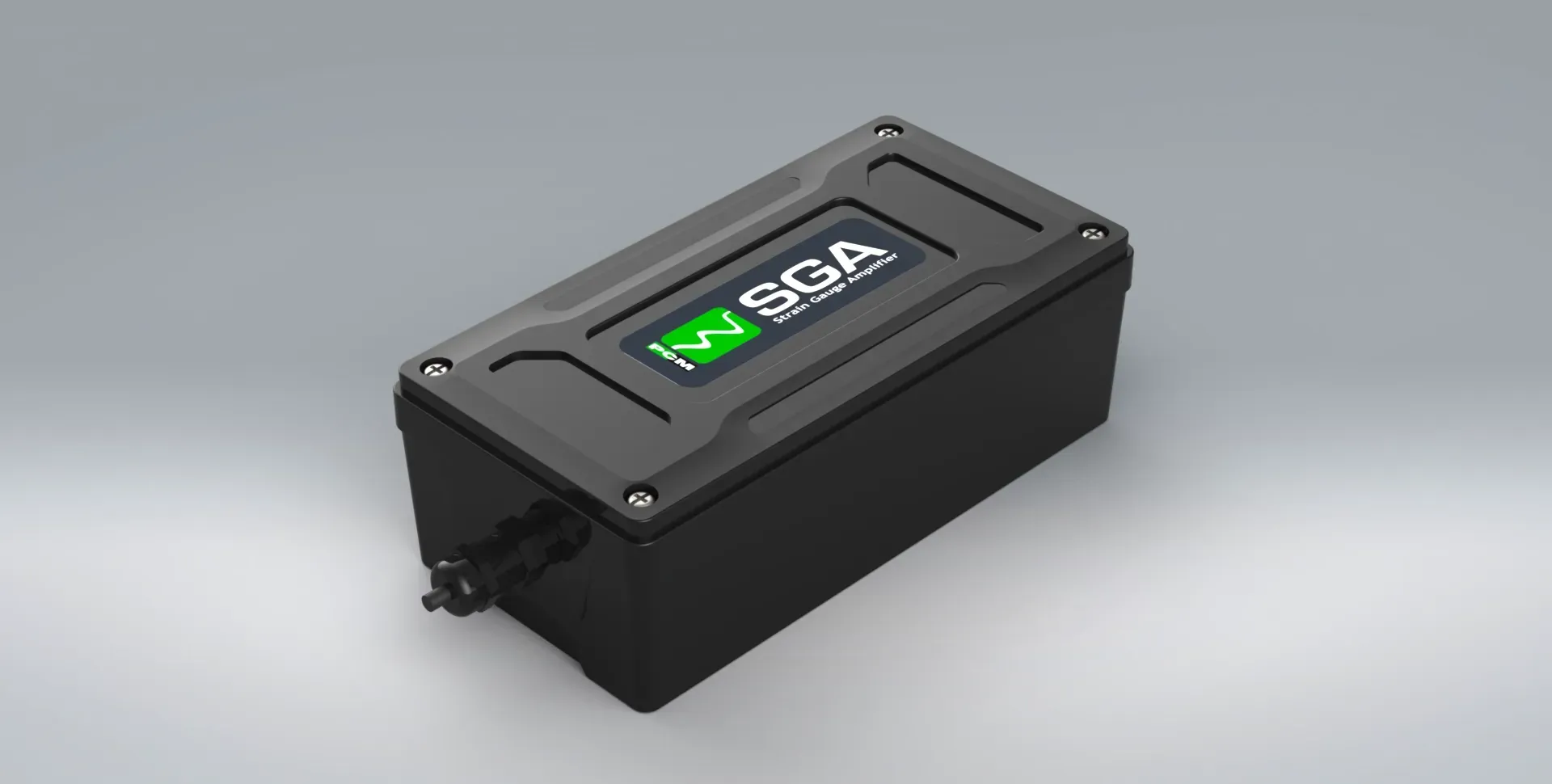

A black box SGA amplifier, simple to use and cost effective, with green and white branding on the front on a grey background.

SGA

April 23, 2024
OUTPUT: 4-20mA, 0-5V, 0-10V, ±10V
POWER SUPPLY: 110/230VAC, 18-24VDC, 9-36VDC
RATING: IP67

available

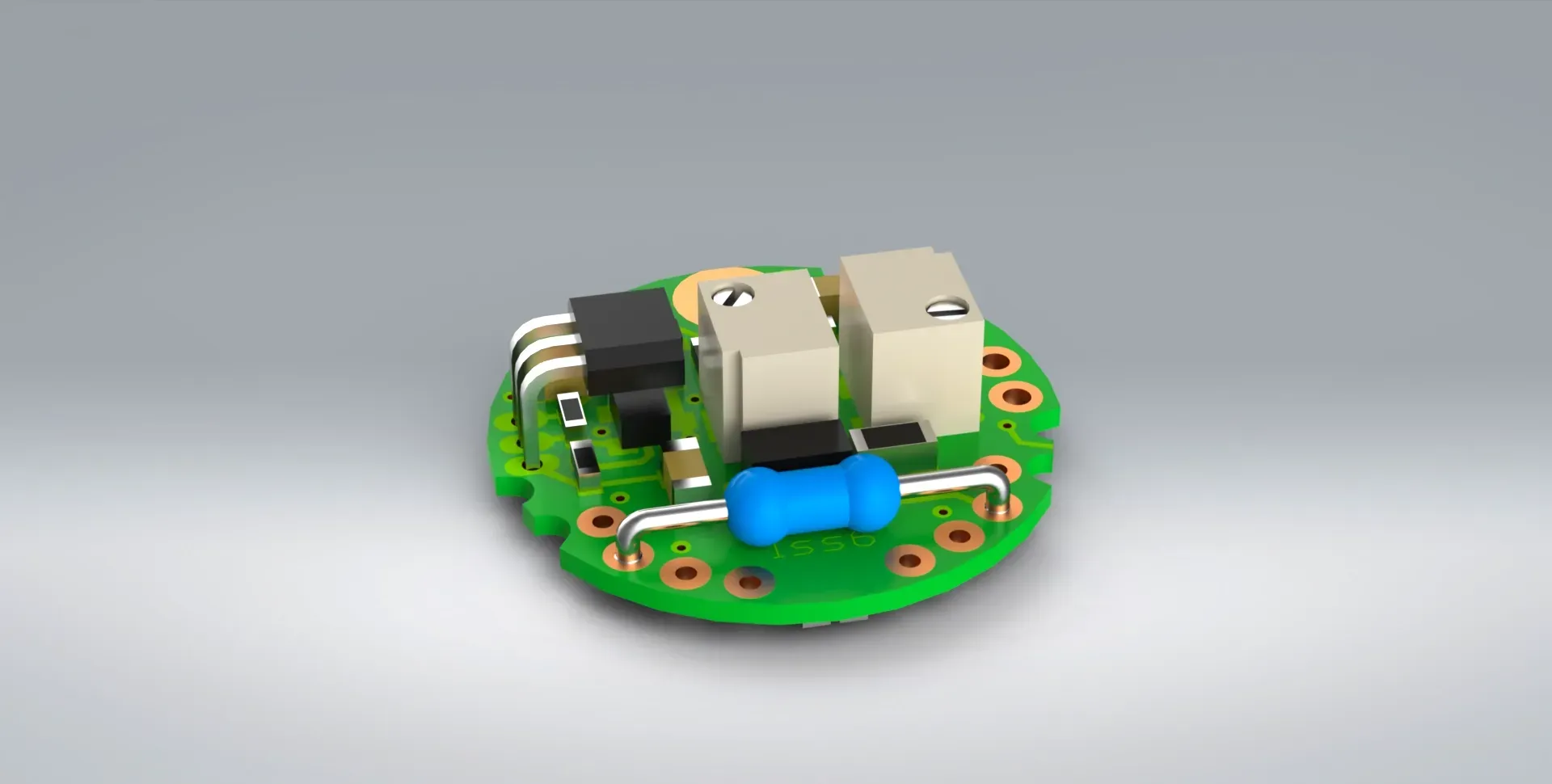

The ICA strain gauge amplifier from PCM is a miniature analogue signal conditioner. It is a small green circuit board.

ICA

April 22, 2024
OUTPUT: 4-20mA, 0-5V, 0-10V, ±5V, ±10V
POWER SUPPLY: 7.5/28VDC
RATING: ENCLOSURE DEPENDENT

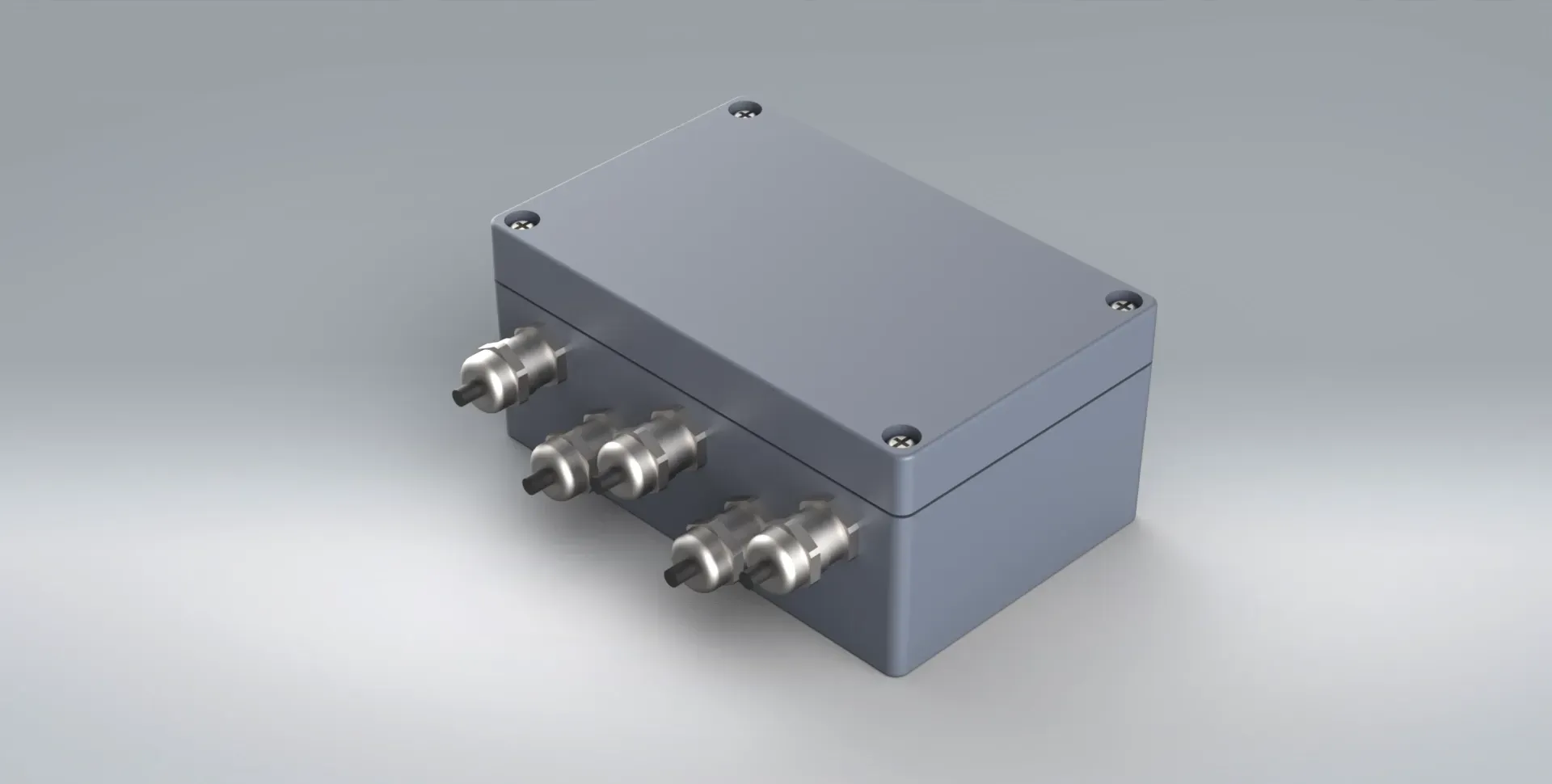

Dark grey metallic 3D Model of the SG4 load cell junction box on a lighter grey background.

SG4

April 21, 2024
OUTPUT: mV/V
POWER SUPPLY: BRIDGE DEPENDENT
RATING: IP65

available
